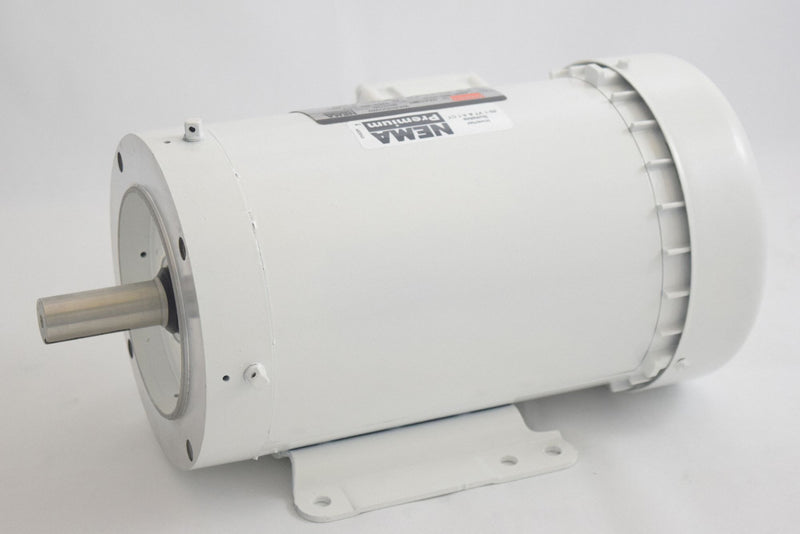

Dayton 2 HP Washdown Motor,3-Phase,3505 Nameplate RPM,230/460 Voltage,Frame 145TC - 5XAT3BG

DaytonSKU: C1565248
Weight : 46.22 lb


$948.11 $1,156.23

Availability : Usually Ships in 1-3 Business Days

This motor was designed to be used in the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.

ItemWashdown Motor
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Nameplate RPM3505
NEMA DesignB
Motor Shaft RotationCW/CCW
Full Load Amps4.9/2.4
Motor Mounting PositionAll Angle
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialEpoxy Coated Rolled Steel
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.7/8 in
Shaft Length2 1/8 in
Motor Shaft DesignKeyed
Body Dia.6 5/8 in
Length Less Shaft11 13/16 in
Overall Length13 15/16 in
Ins. ClassF
RPM Range3001-3600
Shaft Material303 Stainless Steel
Conduit BoxCast Aluminum with Buna-N Gasketed Cover
Drain Plugs(4) Shaft End, (4) Lead End, (2) In Conduit Box
EndshieldsCast Aluminum
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC030A
ApplicationHigh Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
