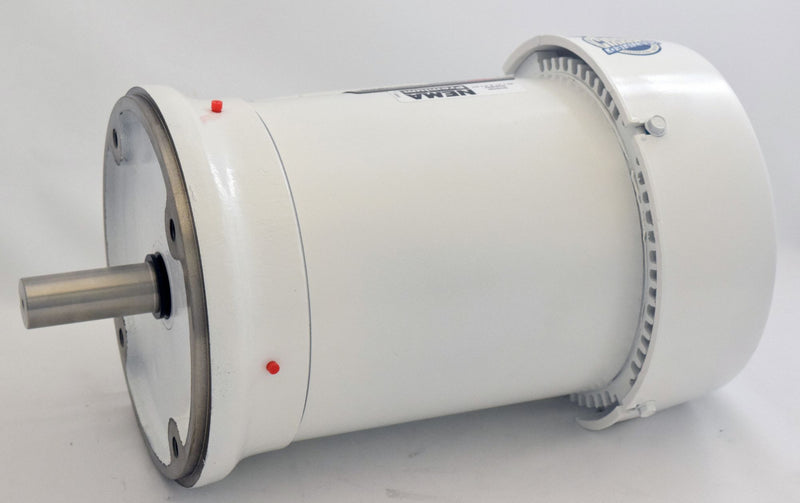

This motor was designed to be used in the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.
| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 5 |
| Nameplate RPM | 3525 |
| Frame | 184TC |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 12/6 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 5/8 in |
| Motor Shaft Design | Keyed |
| Body Dia. | 9 in |
| Length Less Shaft | 14 1/8 in |
| Overall Length | 16 3/4 in |
| Ins. Class | F |
| RPM Range | 3001-3600 |
| Shaft Material | 303 Stainless Steel |
| Conduit Box | Cast Aluminum with Buna-N Gasketed Cover |
| Drain Plugs | (4) Shaft End, (4) Lead End, (2) In Conduit Box |
| Endshields | Cast Aluminum |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 89.5 % |
| CC Number | CC030A |
| Application | High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns |
| Standards | CSA |
