Motor must be securely fastened to prevent vibration and minimize noise. Use of a suitable motor starting device is advisable and usually required by local electrical codes.

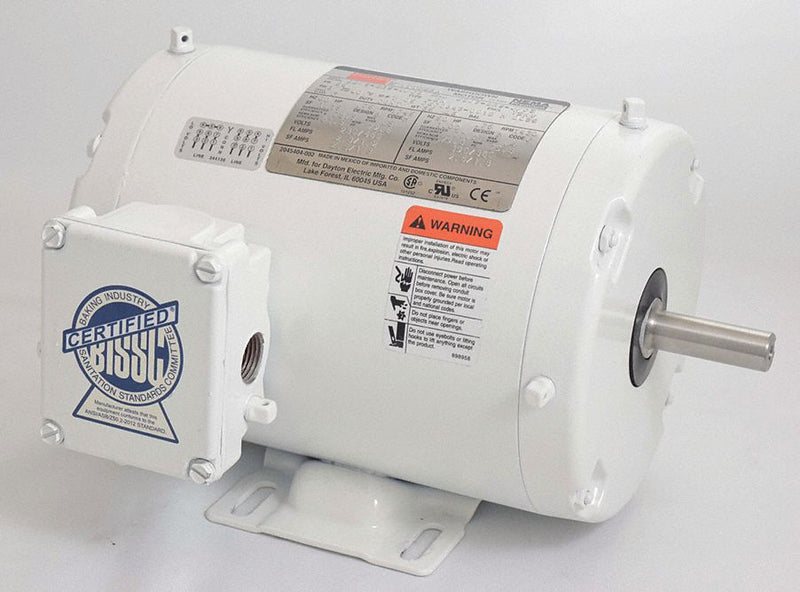

| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 3/4 |
| Nameplate RPM | 1745 |
| Frame | 56 |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 2.3/1.2 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 8 7/8 in |
| Overall Length | 10 13/16 in |
| Ins. Class | F |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Shaft Material | 303 Stainless Steel |
| Conduit Box | Cast Oversized Gasketed |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Endshields | Cast Aluminum |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 81.5 % |
| CC Number | CC030A |
| Application | High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns |
| Includes | Side-M |
