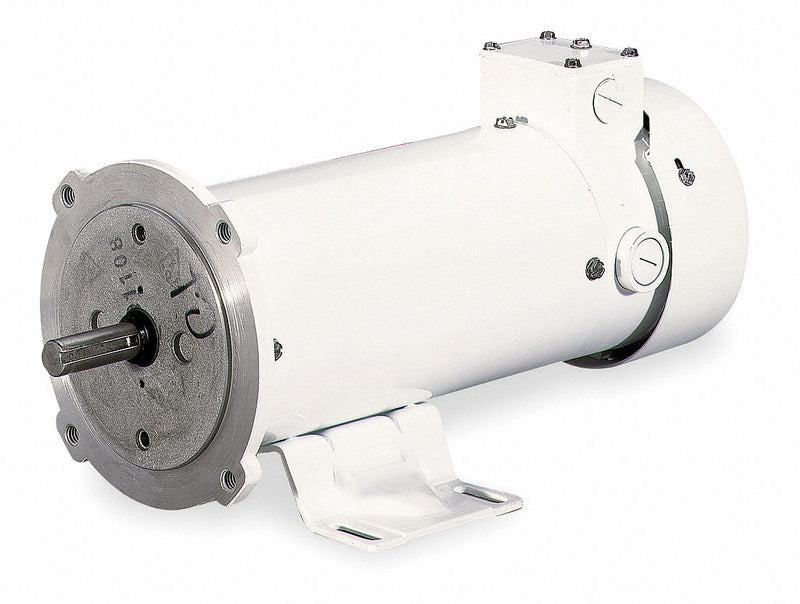

Dayton DC Washdown Motor, DC Permanent Magnet, 3/4 HP - 1F646A

DaytonSKU: C1545280
MPN : 1F646A
Weight : 32.0 lb
filler

Price:
$1,024.97 $1,249.96

Availability : Usually Ships in 1-3 Business Days

Washdown motor is designed for use with speed controls or NEMA Type K DC power supplies on constant or diminishing torque applications. Features externally replaceable brushes and removable bases. Suitable for use in drives for conveyors, food packaging and processing machinery where high humidity and wet environments exist, or where washdown procedures are used.

ItemDC Washdown Motor
Motor ApplicationVariable Speed
Motor DesignDC Permanent Magnet
HP3/4
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Nameplate RPM1750
Voltage90V DC
Full Load Amps7.6 A
Full Load Torque27.4 in-lb
Frame56C
Motor Mounting TypeFace/Base
Motor Thermal ProtectionNone
Ins. ClassH
BearingsBall
Max. Ambient Temp.40 Degrees C
RotationCW/CCW
Overall Length15 in
Length Less Shaft11 7/8 in
Shaft Dia.5/8 in
Shaft Length1 7/8 in
FeaturesRemovable Base
StandardsUL Recognized (E47479)
Voltage Compatibility90V DC
