Dynaquip 1 1/4 in Spring Return - Fail Close Pneumatic Actuated Ball Valve, 3-Piece - P3S26AJSR06312A

Dynaquip ControlsSKU: C1934885
MPN : P3S26AJSR06312A
Weight : 10.33 lb
filler

Price:
$1,081.94 $1,319.44

Availability : Usually Ships in 3-5 Business Days

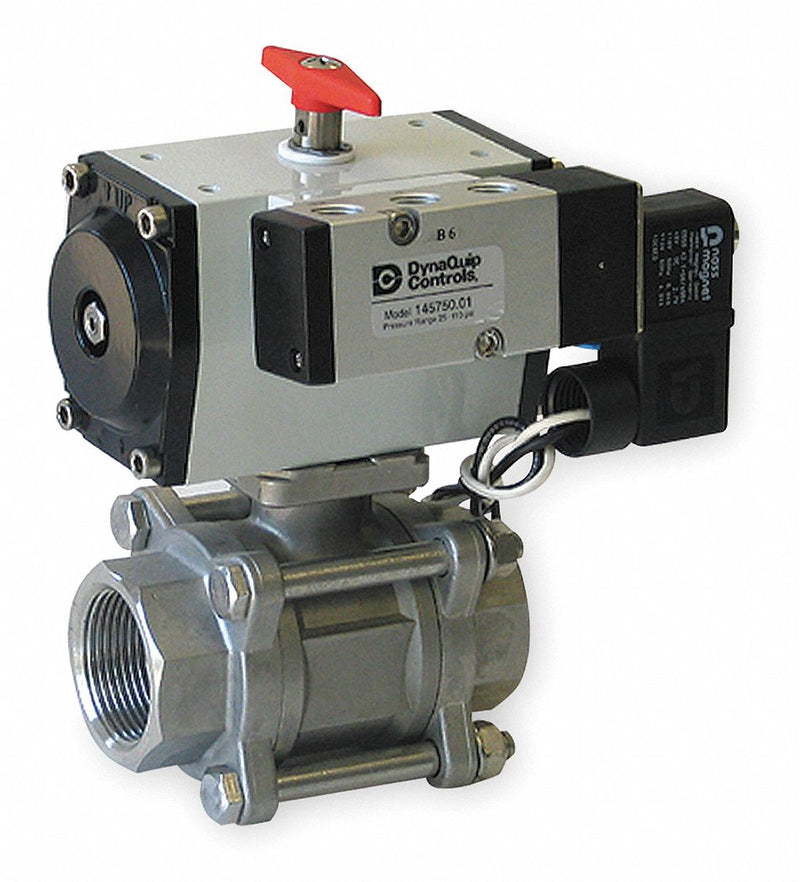

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and features a hard anodized aluminum housing, anticorrosive coating, and a NEMA 4 enclosure. Model is designed to allow easy in-line maintenance and is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.

ItemPneumatic Actuated Ball Valve
Body MaterialStainless Steel
Body StyleInline
Valve Structure3-Piece
Pipe Size1 1/4 in
Connection TypeFNPT
PortFull
Max. Pressure1000 psi CWP
Max. Steam Pressure150 psi WSP
Required Pressure80 psi
Max. Inlet Pressure120 psi
Temp. Range-4 Degrees to 176 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRTFE
Stem Material316 Stainless Steel
Body Seal MaterialRPTFE
OperationSpring Return - Fail Close
MountDirect
StandardsNEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialStainless Steel
