Availability : Usually Ships in 1-3 Business Days

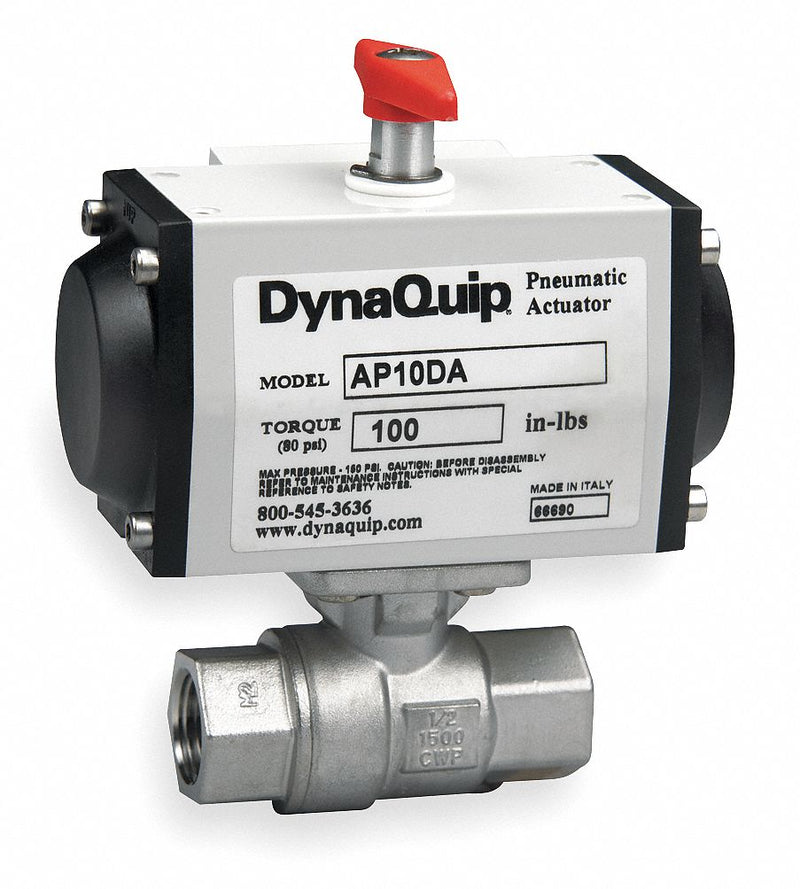

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and features a hard anodized aluminum housing, anticorrosive coating, and a NEMA 4 enclosure. Model is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.
|Item||Pneumatic Actuated Ball Valve|
|Body Material||316 Stainless Steel|
|Pipe Size||1/2 in|
|Max. Pressure||1000 psi CWP|
|Max. Steam Pressure||150 psi WSP|
|Required Pressure||80 psi|
|Max. Inlet Pressure||120 psi|
|Temp. Range||-4 Degrees to 176 Degrees F|
|Ball Material||316 Stainless Steel|
|Stem Material||316 Stainless Steel|
|Body Seal Material||PTFE/Viton|
|Ball Valve Product Group||Actuated|
|Valve Basic Body Material||Stainless Steel|
