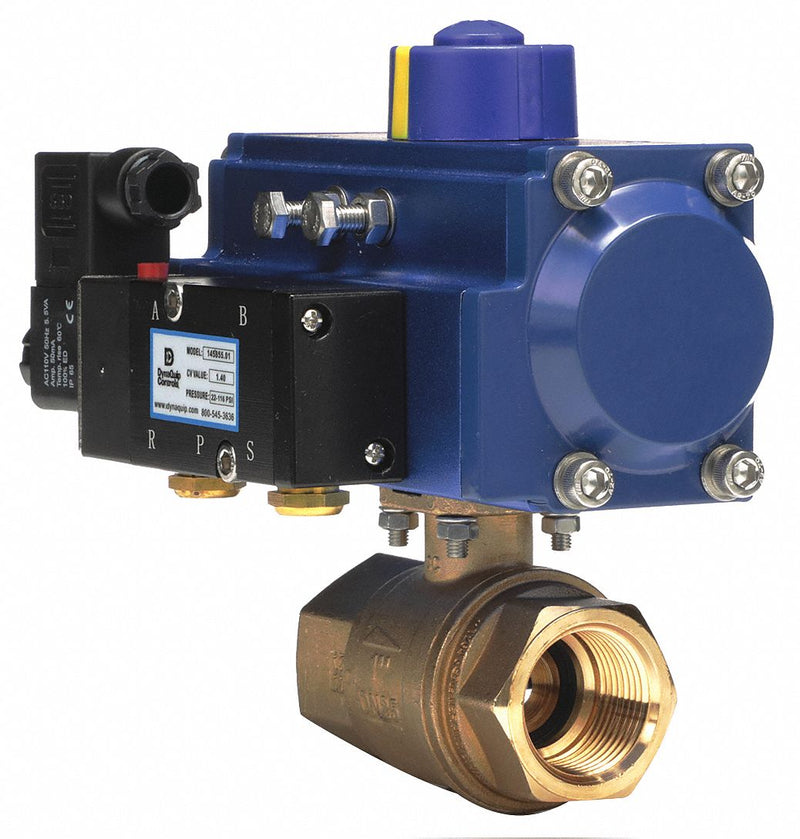

Dynaquip 1 in Double Acting Pneumatic Actuated Ball Valve, 2-Piece - PHH25ATDA052A
filler
Availability : Usually Ships in 1-3 Business Days
This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and comes with an anticorrosive coating. Valve features a hard, anodized aluminum housing, NEMA 4 enclosure, and is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.
| Item | Pneumatic Actuated Ball Valve |
| Body Material | Forged Brass |
| Body Style | Inline |
| Valve Structure | 2-Piece |
| Pipe Size | 1 in |
| Connection Type | FNPT |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Required Pressure | 80 psi |
| Max. Inlet Pressure | 120 psi |
| Temp. Range | -4 Degrees to 176 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Material | Nickel Plated Brass |
| Body Seal Material | PTFE/Viton |
| Operation | Double Acting |
| Mount | Direct |
| Standards | NEMA 4X |
| Ball Valve Product Group | Actuated |
| Valve Basic Body Material | Brass |
