Dynaquip 3/4 in Spring Return Pneumatic Actuated Ball Valve, 2-Piece - PHH24ATSR05212A

Dynaquip ControlsSKU: C1934926
MPN : PHH24ATSR05212A
Weight : 3.6 lb

filler

Price:
$745.95 $1,203.14

Availability : Usually Ships in 5 Business Days

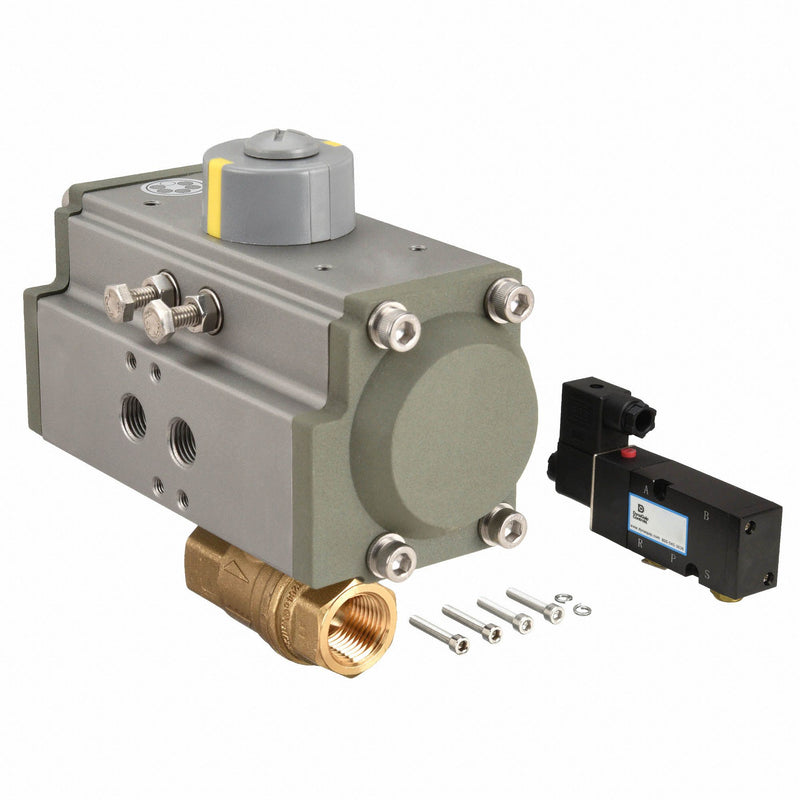

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and comes with an anticorrosive coating. Valve features a hard, anodized aluminum housing, NEMA 4 enclosure, and is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.

ItemPneumatic Actuated Ball Valve
Body MaterialForged Brass
Body StyleInline
Valve Structure2-Piece
Pipe Size3/4 in
Connection TypeFNPT
PortFull
Max. Pressure600 psi CWP
Required Pressure80 psi
Max. Inlet Pressure120 psi
Temp. Range-4 Degrees to 176 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialPTFE
Stem MaterialNickel Plated Brass
Body Seal MaterialPTFE/Viton
OperationSpring Return
MountDirect
StandardsNEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialBrass
