Dynaquip 3/4 in Spring Return Pneumatic Actuated Ball Valve, 2-Piece - P2S24AJSR05210A

Dynaquip ControlsSKU: C1934913
MPN : P2S24AJSR05210A
Weight : 6.7 lb
filler

Price:
$722.53 $881.13

Availability : Quick Ship - Usually Delivered in 2 Business Days

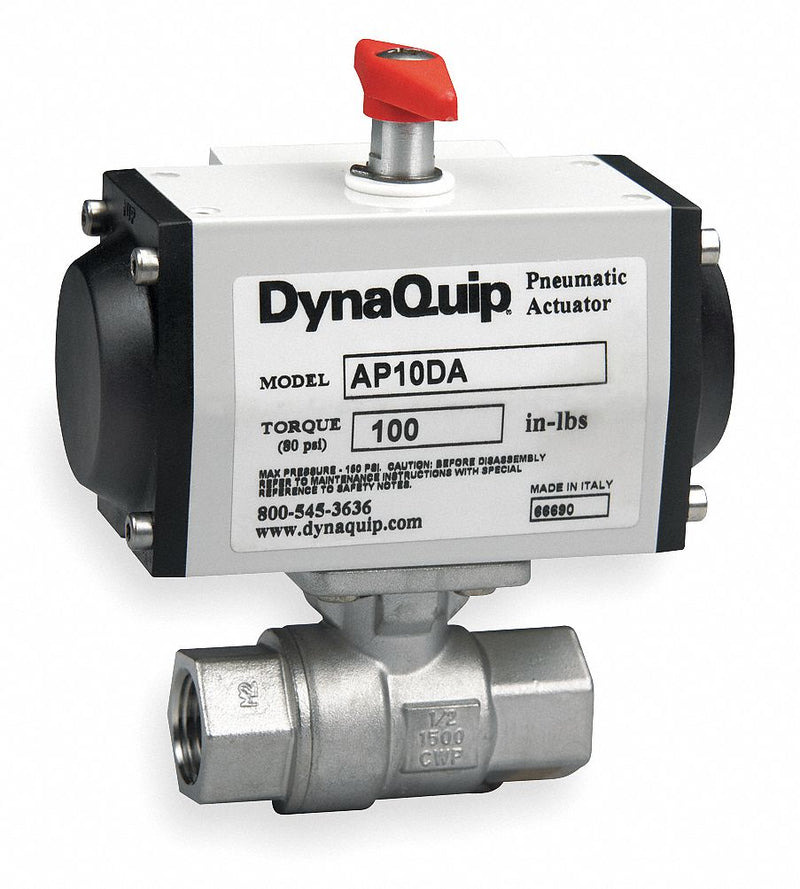

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and features a hard anodized aluminum housing, anticorrosive coating, and a NEMA 4 enclosure. Model is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.

ItemPneumatic Actuated Ball Valve
Body Material316 Stainless Steel
Body StyleInline
Valve Structure2-Piece
Pipe Size3/4 in
Connection TypeFNPT
PortFull
Max. Pressure1000 psi CWP
Max. Steam Pressure150 psi WSP
Required Pressure80 psi
Max. Inlet Pressure120 psi
Temp. Range-4 Degrees to 176 Degrees F
Ball Material316 Stainless Steel
Seat MaterialPTFE
Stem Material316 Stainless Steel
Body Seal MaterialPTFE/Viton
OperationSpring Return
MountDirect
StandardsNEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialStainless Steel
