Dynaquip 3 in Spring Return - Fail Close Pneumatic Actuated Ball Valve, 2-Piece - PHH2AATSR09210A

Dynaquip ControlsSKU: C1934853
MPN : PHH2AATSR09210A
Weight : 22.0 lb
filler

Price:
$1,464.80 $1,786.34

Availability : Usually Ships in 3-5 Business Days

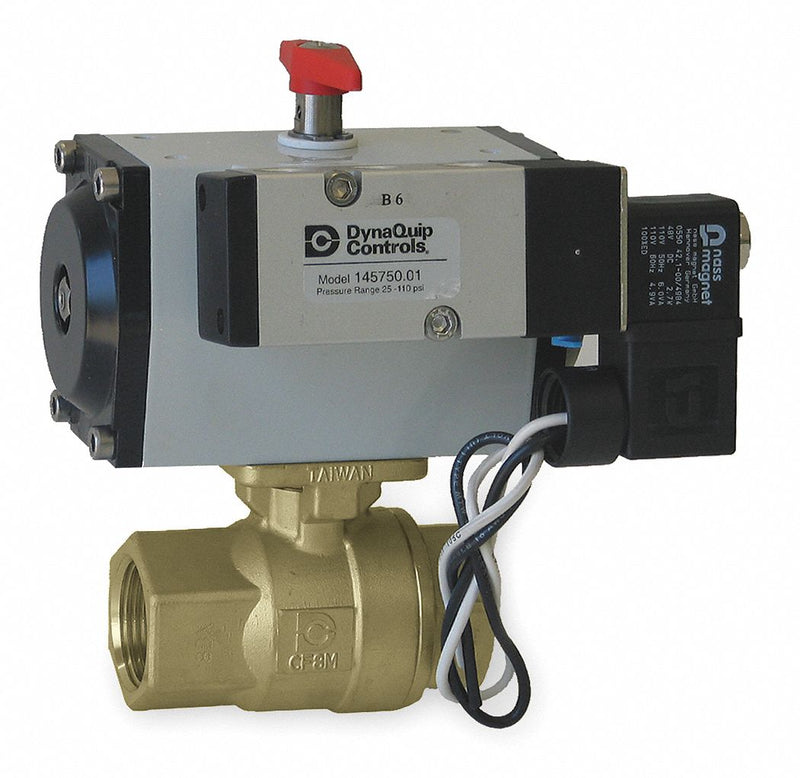

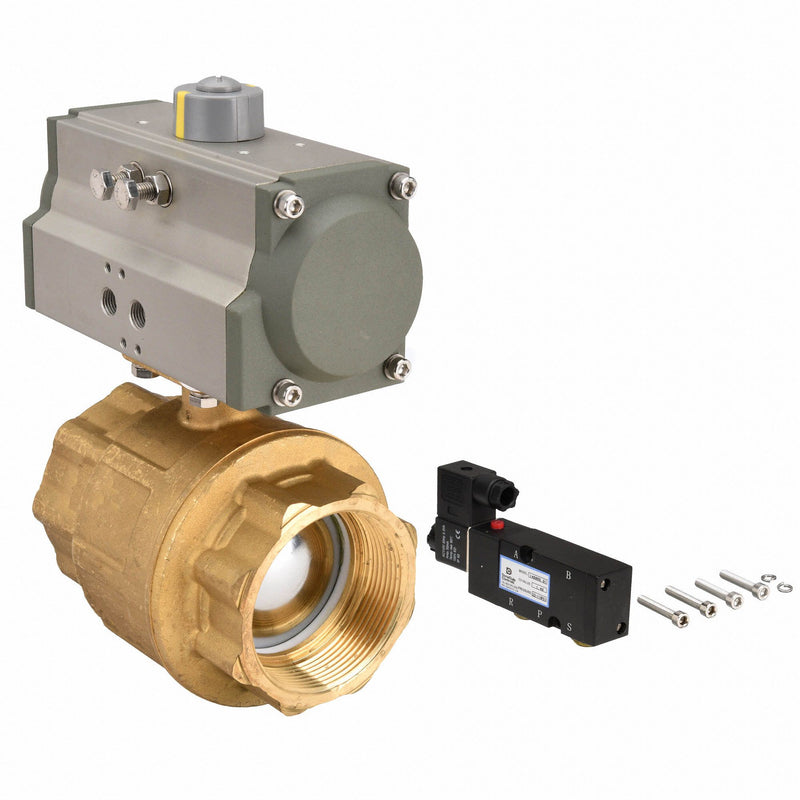

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and comes with an anticorrosive coating. Valve features a hard, anodized aluminum housing, NEMA 4 enclosure, and is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.

ItemPneumatic Actuated Ball Valve
Body MaterialLead Free Brass
Body StyleInline
Valve Structure2-Piece
Pipe Size3 in
Connection TypeFNPT
PortFull
Max. Pressure600 psi CWP
Required Pressure80 psi
Max. Inlet Pressure120 psi
Temp. Range-4 Degrees to 176 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialPTFE
Stem MaterialNickel Plated Brass
Body Seal MaterialPTFE/Viton
OperationSpring Return - Fail Close
MountDirect
StandardsNEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialBrass
