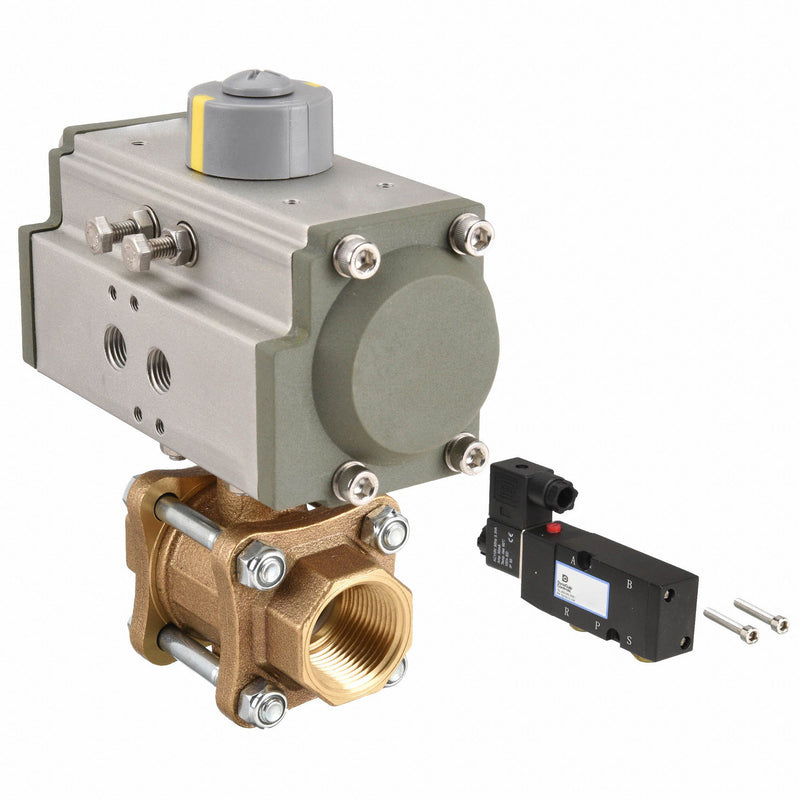

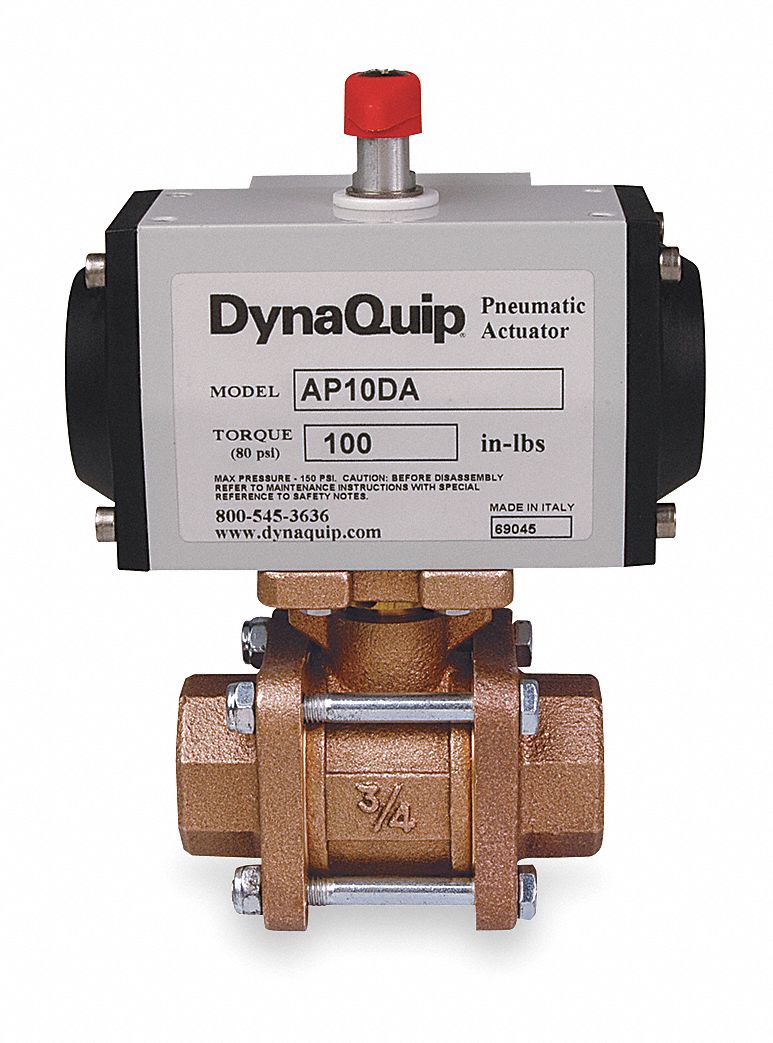

Dynaquip 3/4 in Double Acting Pneumatic Actuated Ball Valve, 3-Piece - PVA64AMDA052A

Dynaquip ControlsSKU: C1934890
MPN : PVA64AMDA052A
Weight : 6.21 lb
filler

Price:
$638.29 $778.40

Availability : Usually Ships in 1-3 Business Days

This compact Dynaquip pneumatic actuated ball valve provides accurate alignment and features a hard anodized aluminum housing, anticorrosive coating, and a NEMA 4 enclosure. Model is designed to allow easy in-line maintenance and is suitable for continuous rapid cycling or hazardous conditions. Integral 120VAC, 60 Hz, NAMUR-mount solenoid with three 1/4" NPT ports.

ItemPneumatic Actuated Ball Valve
Body MaterialBronze
Body StyleInline
Valve Structure3-Piece
Pipe Size3/4 in
Connection TypeFNPT
PortFull
Max. Pressure600 psi CWP
Required Pressure80 psi
Max. Inlet Pressure300 psi
Temp. Range-4 Degrees to 176 Degrees F
Ball Material316 Stainless Steel
Seat MaterialPTFE
Stem MaterialStainless Steel
Body Seal MaterialPTFE/Viton
OperationDouble Acting
MountDirect
StandardsNEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialBronze
