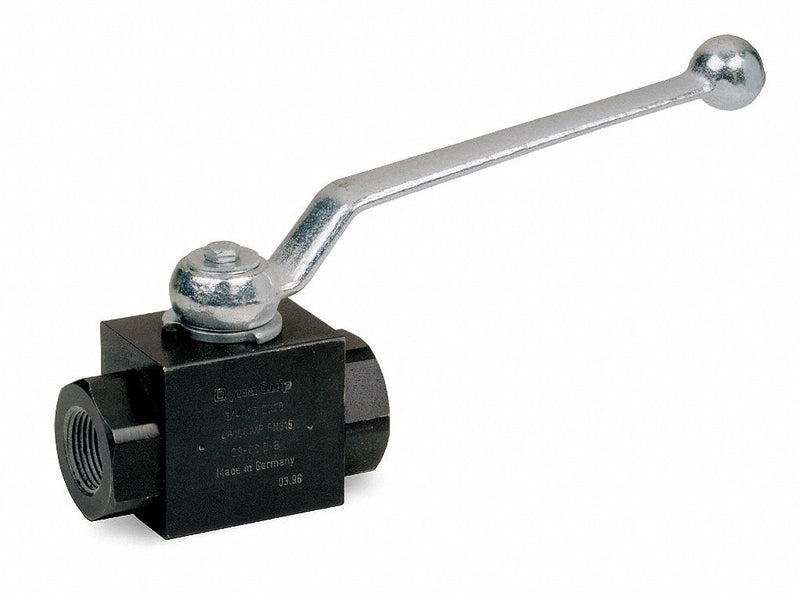

Dynaquip Ball Valve, Carbon Steel, Inline, 2-Piece, Pipe Size 1 1/4 in, Connection Type FNPT x FNPT - VAE2.A0 1 1/4

Dynaquip ControlsSKU: C1933455
MPN : VAE2.A0 1 1/4
Weight : 7.8 lb


$304.09 $490.47

Availability : Usually Ships in 3-5 Business Days

Ideal for use as a fuel line shutoff for gasoline- and diesel-powered construction equipment vehicles, this DYNAQUIP CONTROLS ball valve is suitable for use in compressor skid, hydraulic hook-up, production line, and well head applications. Also for use in hydraulic and in general industrial applications on equipment and plumbing that requires total shutoff capability. The highly inert PTFE seats and seals provide greater corrosion resistance.

ItemBall Valve
Body MaterialCarbon Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1 1/4 in
Connection TypeFNPT x FNPT
Max. Pressure4600 psi CWP
Temp. Range-20 Degrees to 175 Degrees F
Ball MaterialChrome Plated Carbon Steel
Seat MaterialDelrin(R)
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialSteel
Stem MaterialZinc Plated Steel
Ball Valve Product GroupManual
Valve Basic Body MaterialCarbon Steel
StandardsRoHS Compliant
Overall Length14.9 in
