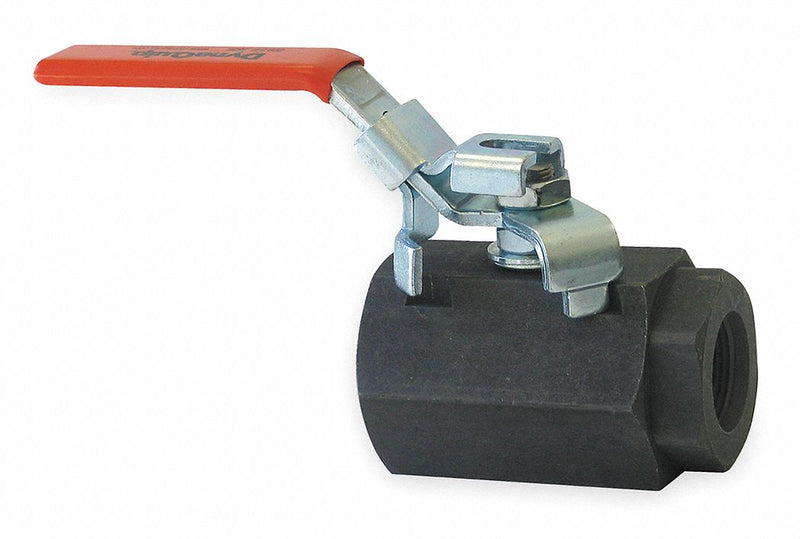

Dynaquip Ball Valve, Carbon Steel, Inline, 2-Piece, Pipe Size 3/4 in, Connection Type FNPT x FNPT - VLE2.AK0P 3/4

Dynaquip ControlsSKU: C1933459
MPN : VLE2.AK0P 3/4
Weight : 2.7 lb

filler

Price:
$139.53 $225.05

Availability : Usually Ships in 5 Business Days

Ideal for use as a fuel line shutoff for gasoline- and diesel-powered construction equipment vehicles, this DYNAQUIP CONTROLS ball valve is suitable for use in compressor skid, hydraulic hook-up, production line, and well head applications. Also for use in hydraulic and in general industrial applications on equipment and plumbing that requires total shutoff capability. The highly inert PTFE seats and seals provide greater corrosion resistance.

ItemBall Valve
Body MaterialCarbon Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size3/4 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure3000 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 425 Degrees F
Ball MaterialCarbon Steel
Seat MaterialCarbon & Graphite Filled PTFE
Stem TypeBlowout Proof
Handle TypeLatching Lockout
Handle MaterialSteel with Vinyl Grip
Stem MaterialNickel Plated Steel
Body Seal MaterialPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialCarbon Steel
StandardsRoHS Compliant
Overall Length4.16 in
