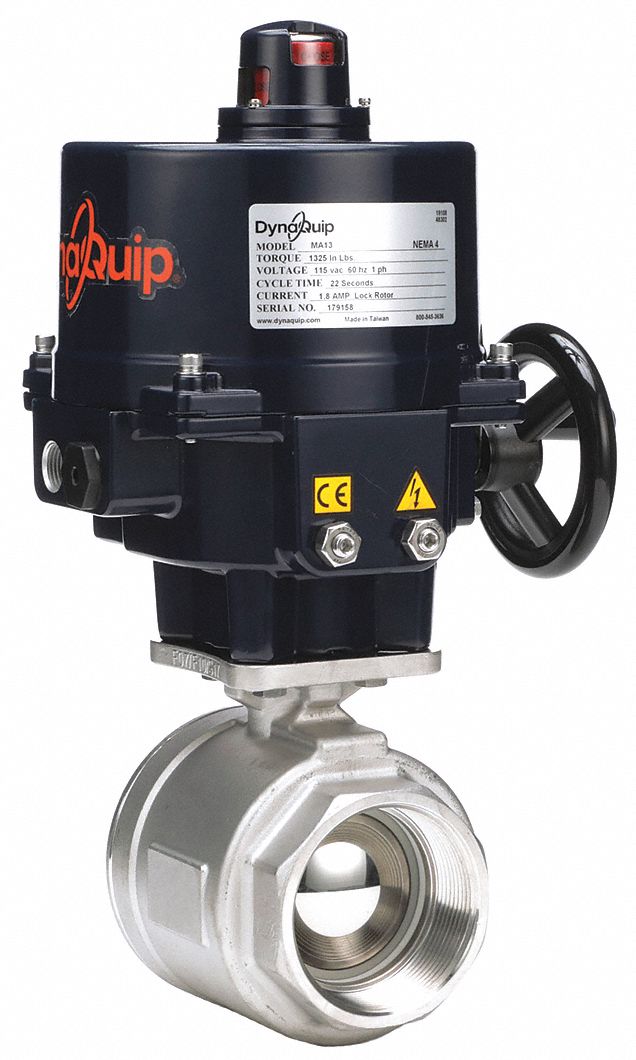

Dynaquip 316 Stainless Steel Electronic Actuated Ball Valve, 3 in Pipe Size, 120V AC Voltage - E2S2AAJE02
filler
Availability : Usually Ships in 5 Business Days
This compact Dynaquip electronic actuated ball valve provides accurate alignment and features an anticorrosive coating, NEMA 4X enclosure, reversible motor, terminal strip, manual override, and a hardened precision gear train. 15 to 22 sec. general cycle time.
| Item | Electronic Actuated Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | 2-Way |
| Valve Structure | 2-Piece |
| Pipe Size | 3 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Voltage | 120V AC |
| Max. Pressure | 1000 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -4 Degrees to 392 Degrees F |
| Ball Material | CF8M Stainless Steel |
| Ambient Temp. Range | -40 Degrees to 150 Degrees F |
| Seat Material | RTFE |
| Stem Type | Blowout Proof |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | Viton |
| Mount | Direct |
| Standards | ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X |
| Ball Valve Product Group | Actuated |
| Valve Basic Body Material | Stainless Steel |
