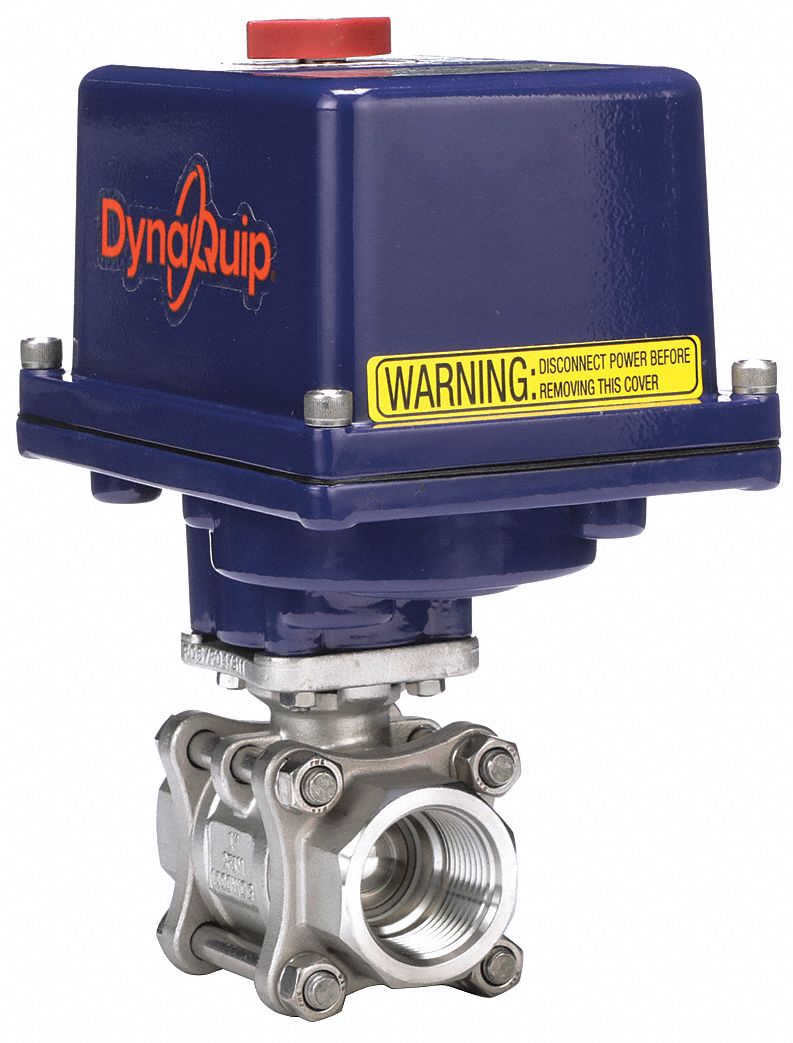

Dynaquip Controls E3S25AJE21 - Electronic Ball Valve SS 1 In.

Dynaquip ControlsSKU: C2882467
MPN : E3S25AJE21
Weight : 6.63 lb

filler

Price:
$840.65 $1,355.89

Availability : Usually Ships in 1-3 Business Days
ItemElectronic Actuated Ball Valve
Body Material316 Stainless Steel
Body Style2-Way
Valve Structure3-Piece
Pipe Size1 in
Connection TypeFNPT x FNPT
PortFull
Voltage120V AC
Max. Pressure1000 psi CWP
Max. Steam Pressure150 psi WSP
Max. Operating Pressure Differential500 psi
Temp. Range-4 Degrees to 392 Degrees F
Ball MaterialCF8M Stainless Steel
Ambient Temp. Range-40 Degrees to 150 Degrees F
Seat MaterialRTFE
Stem TypeBlowout Proof
Stem Material316 Stainless Steel
Body Seal MaterialPTFE/Viton
MountDirect
StandardsASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialStainless Steel
