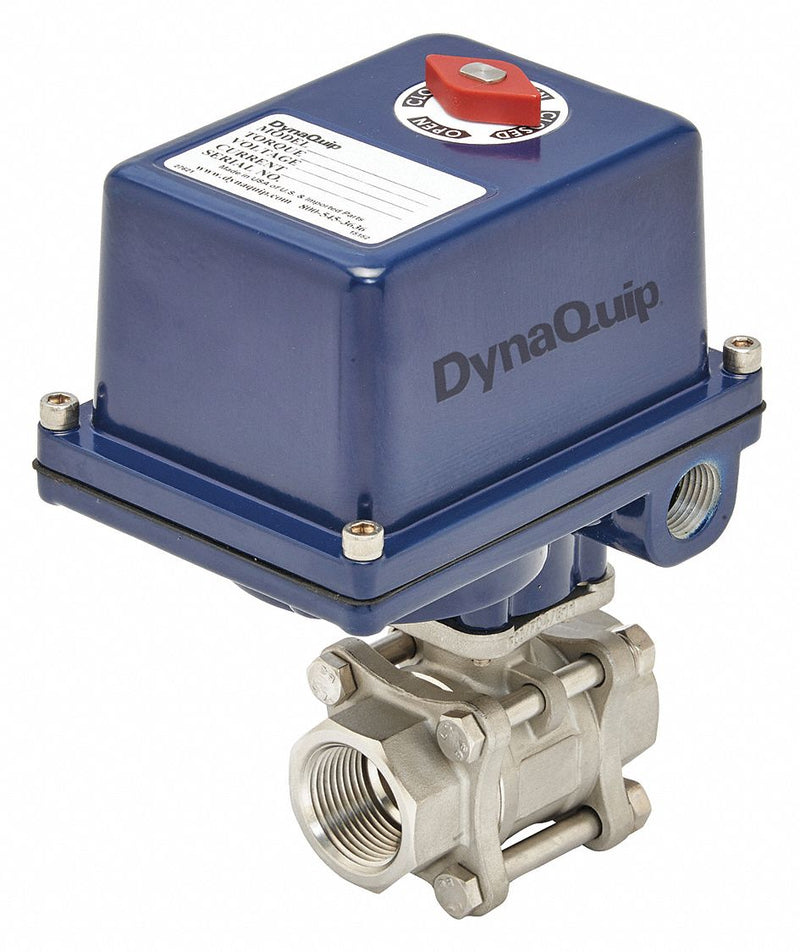

Dynaquip Controls E3S27AJE25 - Electronic Ball Valve SS 1-1/2 In.

Dynaquip ControlsSKU: C2882475
MPN : E3S27AJE25
Weight : 30.71 lb
filler

Price:
$1,545.75 $1,885.06

Availability : Usually Ships in 1-3 Business Days
ItemElectronic Actuated Ball Valve
Body Material316 Stainless Steel
Body Style2-Way
Valve Structure3-Piece
Pipe Size1 1/2 in
Connection TypeFNPT x FNPT
PortFull
Voltage120V AC
Max. Pressure1000 psi CWP
Max. Steam Pressure150 psi WSP
Max. Operating Pressure Differential500 psi
Temp. Range-4 Degrees to 392 Degrees F
Ball MaterialCF8M Stainless Steel
Ambient Temp. Range-22 Degrees to 149 Degrees F
Seat MaterialRTFE
Stem TypeBlowout Proof
Stem Material316 Stainless Steel
Body Seal MaterialPTFE/Viton
MountDirect
StandardsASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X
Ball Valve Product GroupActuated
Valve Basic Body MaterialStainless Steel
