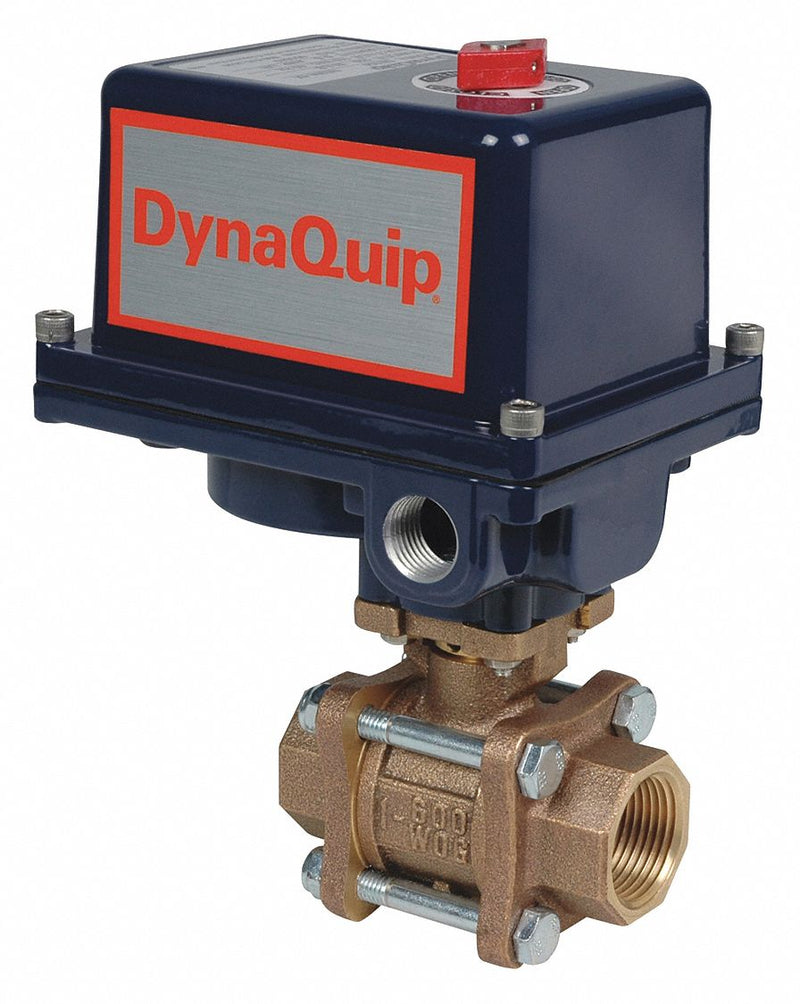

Dynaquip Controls EVA66AME21 - Electronic Ball Valve Bronze 115VAC
filler
Availability : Usually Ships in 3-5 Business Days
| Item | Electronic Actuated Ball Valve |
| Body Material | Bronze |
| Body Style | 2-Way |
| Valve Structure | 3-Piece |
| Pipe Size | 1 1/4 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Voltage | 120V AC |
| Max. Pressure | 600 psi CWP |
| Max. Operating Pressure Differential | 300 psi |
| Temp. Range | -20 Degrees to 400 Degrees F |
| Ball Material | CF8M Stainless Steel |
| Ambient Temp. Range | -40 Degrees to 150 Degrees F |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE/Viton |
| Mount | Direct |
| Standards | ASTM A351-CF8M, ISO5211, NEMA 4, NEMA 4X |
| Ball Valve Product Group | Actuated |
| Valve Basic Body Material | Bronze |
