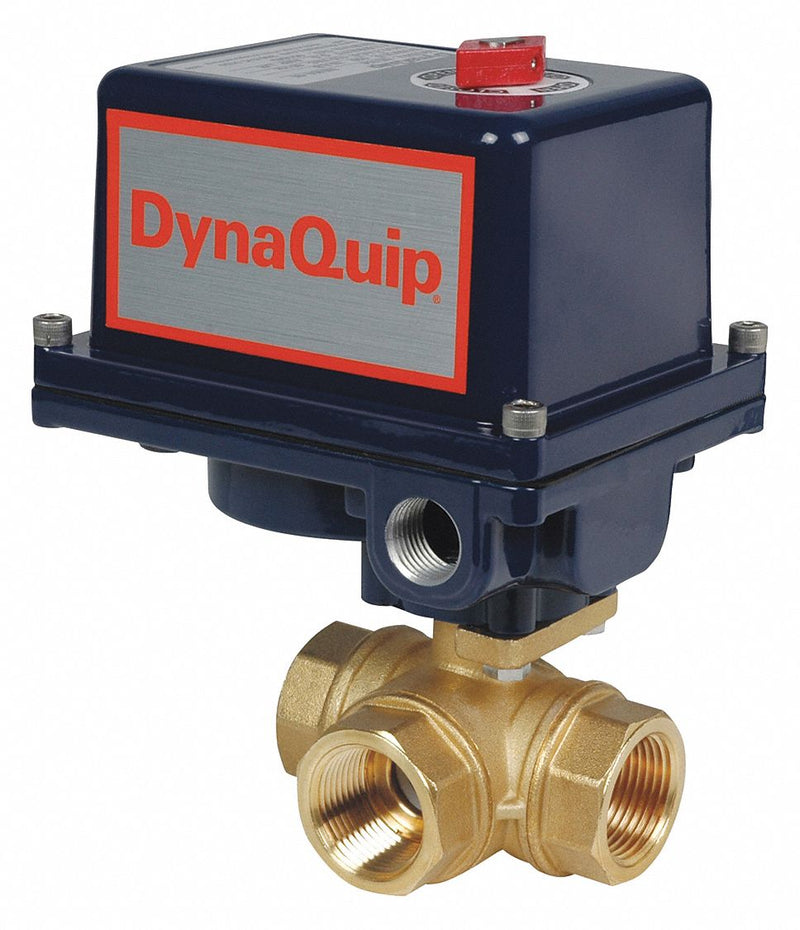

Dynaquip Controls EYHG6AUE25 - Electronic Ball Valve Brass 115VAC
filler
Availability : Usually Ships in 1-3 Business Days
| Item | Electronic Actuated Ball Valve |
| Body Material | Brass |
| Body Style | 3-Way |
| Valve Structure | 2-Piece |
| Pipe Size | 1 1/4 in |
| Connection Type | FNPT x FNPT x FNPT |
| Port | Standard L |
| Voltage | 120V AC |
| Max. Pressure | 400 psi CWP |
| Max. Steam Pressure | 100 psi WSP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Ni-Chrome Plated Brass |
| Ambient Temp. Range | -40 Degrees to 150 Degrees F |
| Seat Material | PTFE/Viton |
| Stem Type | Blowout Proof |
| Stem Material | Nickel Plated Brass |
| Body Seal Material | Viton |
| Mount | Direct |
| Standards | ISO5211, NEMA 4, NEMA 4X |
| Ball Valve Product Group | Actuated |
| Valve Basic Body Material | Brass |
