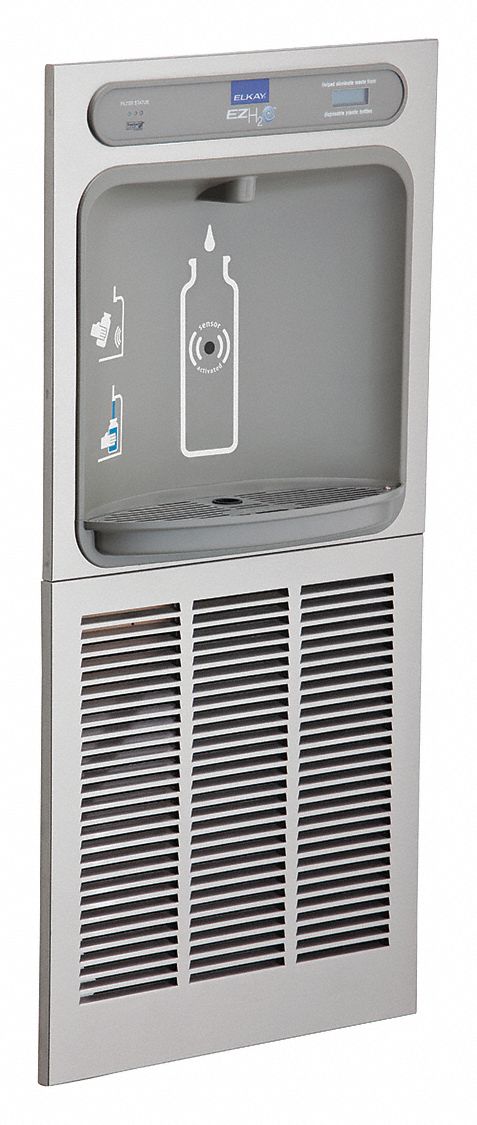

The Elkay EZH2O bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing your dependency on disposable plastic bottles. Fully recessed in-wall design. The filling station features a sanitary no-touch sensor activation with automatic 20 sec. shut-off timer. Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains (sold separately). A visual filter monitor with LED filter status indicator lets you know when to change the filter. Fill rate is 1.1 GPM; 8 GPH.,The 3000 gal. filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste, and odor reduction,Green Ticker informs you of number of 20 oz. plastic water bottles saved from waste,Silver ion antimicrobial protection on key plastic components helps inhibit the growth of mold and mildew,Drain system eliminates standing water
| Item | Bottle Filling Station |
| Water Dispenser Product Group | Bottle Filling Station |
| Indoor / Outdoor | Indoor |
| Refrigerated / Non-Refrigerated | Refrigerated |
| Dispenser Design | Recessed |
| Number of Levels | 1 |
| Cold Water Capacity | 8 gph |
| Dispenser Operation | Electronic Sensor |
| ADA Compliant | Yes |
| Vandal Resistant | No |
| Dispensing Temp. | Cold |
| Compressor HP | 1/5 hp |
| Full Load Amps | 5 A |
| Height | 40 13/16 in |
| Width | 19 3/4 in |
| Depth | 3 1/2 in |
| Inlet | 3/8 in Tube OD |
| Color | Stainless Steel |
| Voltage | 115 V |
| Refrigerant | 134A (CFC Free) |
| Regulator | Maintains Constant Stream Height at Line Pressures of 20 to 105 psi |
| Drain Connection | 1 1/4 in |
| Includes | 8 GPH Chiller, Bottle Filler (Sensor Activated), Mounting Frame, WaterSentry(R) Plus 3000 Gal Filter |
| Manufacturers Warranty Length | 5 yr on Refrigeration System and 1 yr Electrical Components and Water System |
| Standards | ADA, Buy American Act, CAN/CSA C22.2 120, GreenSpec, NSF 372 (lead free), NSF 42, NSF 53, NSF 61, UL 399 |
| Compliance | Accessibility, Electrical, Lead, Mechanical, Water Qualtiy |
