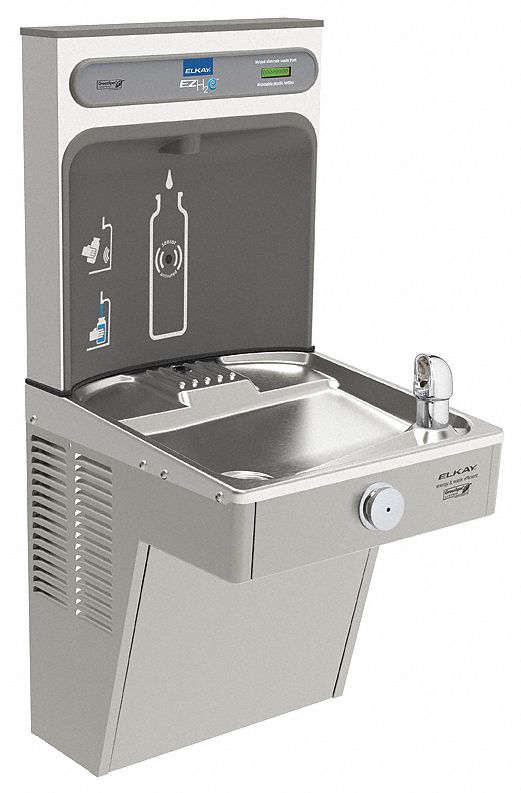

The Elkay EZH2O Bottle Filling Station is a vandal-resistant cooler and bottle-filling station in a consolidated, space-saving, ADA-compliant design. The bottle filler features a sanitary, touchless sensor activation with automatic 20 sec. shut-off timer for easy use. It also has a laminar flow that helps provide clean fill with minimal splash. The Vandal-Resistant StreamSaver Bubbler, which has simple push bar activation, features a chrome-plated integral hood guard to help prevent contamination and tampering as well as reduce water usage. It has a high-performance compressor and insulation to help reduce energy consumption. Silver ion anti-microbial protection on key plastic components helps inhibit the growth of mold and mildew. The Green Ticker informs you of the number of 20 oz. plastic water bottles saved from waste. Suitable for indoor, wall-mount applications.
| Item | Water Cooler with Bottle Filling Station |
| Water Dispenser Product Group | Water Cooler with Bottle Filling Station |
| Indoor / Outdoor | Indoor |
| Refrigerated / Non-Refrigerated | Refrigerated |
| Dispenser Design | Wall |
| Number of Levels | 1 |
| Cold Water Capacity | 8 gph |
| Dispenser Operation | Electronic Sensor and Front Pushbar |
| ADA Compliant | Yes |
| Vandal Resistant | Yes |
| Compressor HP | 1/3 hp |
| Full Load Amps | 3.8 A |
| Height | 39 3/4 in |
| Width | 18 1/16 in |
| Depth | 18 1/16 in |
| Inlet | 3/8 in Tube OD |
| Color | Stainless Steel |
| Voltage | 115 V |
| Refrigerant | 134A (Libre CFC) |
| Regulator | Maintains Constant Stream Height at Line Pressures of 20 to 105 psi |
| Drain Connection | 1 1/4 in |
| Includes | Bottle Filler (Sensor Activated), High-Efficiency Water Cooler, Strainer |
| Manufacturers Warranty Length | 5 yr on Refrigeration System and 1 yr Electrical Components and Water System |
| Standards | ADA, ASME A112.193/CSA B45.4, Buy American Act, CAN/CSA C22.2 120, GreenSpec, NSF 372 (lead free), NSF 61, UL 399 |
| Compliance | Accessibility, Electrical, Lead, Mechanical, Water Qualtiy |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
