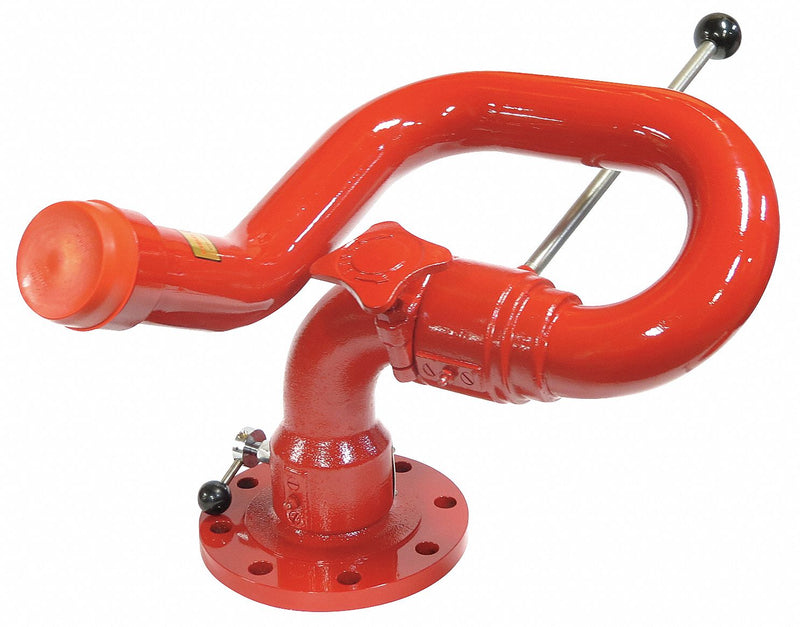

Elkhart Monitor, 4 in 150 lb ANSI Flange Mounting, Tiller Control, 4 in Flange Inlet, 2-1/2 in M NHT Outlet - 299-11
Elkhart Monitor, 4 in 150 lb ANSI Flange Mounting, Tiller Control, 4 in Flange Inlet, 2-1/2 in M NHT Outlet - 299-11

Elkhart Monitor, 4 in 150 lb ANSI Flange Mounting, Tiller Control, 4 in Flange Inlet, 2-1/2 in M NHT Outlet - 299-11

Elkhart BrassSKU: C1864099
MPN : 299-11
Weight : 53.5 lb

filler
Price:
$2,367.78 $2,887.54

Availability : Usually Ships in 1-3 Business Days

Construction features include corrosion-resistant brass, cast-brass swivel joints, bronze balls in swivel joints, stainless steel handles, and grease zerks for easy lubrication. Include positive twist locks for both vertical and horizontal movement. Nozzles sold separately.

ItemMonitor
Mounting4 in 150 lb ANSI Flange
Inlet4 in Flange
Outlet2-1/2 in M NHT
ControlTiller
Max. Flow1,250 gpm
Waterway2 1/2 in
Vertical Travel135 Degrees (90 Degrees Above), 45 Degrees Below Horizontal)
Horizontal Travel360 Degrees
MaterialBrass
FinishRed Urethane
Height20.79 in
Width18 in
Length19.5 in
Pivot Height8.69 in
Max. Pressure200 psi
Friction Loss24 psi at 1250 gpm/ 18 psi at 1000 gpm/ 11 psi at 750 gpm
IncludesGrease Zerks
StandardsCE, FM
