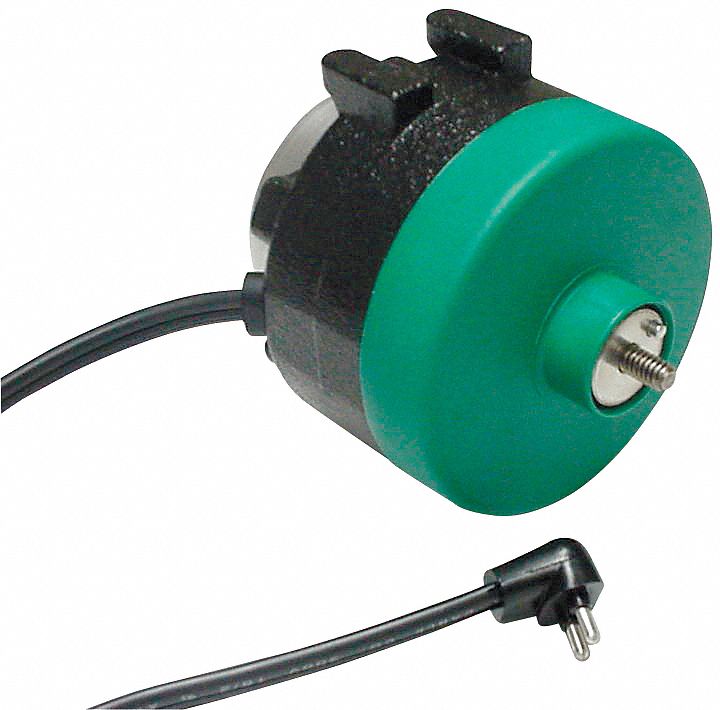

Motor is suitable for use with condenser and evaporator fans, walk-in coolers and freezers, ice machines, beverage merchandisers, and vending machines. Includes speed nut and mounting screws.
| Item | ECM Unit Bearing Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/60 |
| Output Watts | 6 to 12 |
| Nameplate RPM | 1550 |
| Frame | Non-Standard |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.3 |
| Motor Mounting Type | Rear/Foot |
| Motor Thermal Protection | Auto |
| Ins. Class | A |
| Motor Shaft Rotation | CWLE |
| Motor Bearings | Unit |
| Motor Service Factor | 1 |
| Ambient Temperature | -40 to 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Cast Iron |
| Overall Length | 4 1/8 in |
| Length Less Shaft | 3 3/4 in |
| Motor Shaft Design | Threaded |
| Shaft Dia. | 1/4 in |
| Shaft Length | 7/16 in |
| Body Dia. | 3 1/2 in |
| Mounting Pattern | Circular con Perno |
| Motor Mounting Position | All Angle |
| Bolt Circle Dia. | 2 13/16 in |
| Application | Condenser Fans, Evaporator Fans |
| Capacitor Required | No |
| Plug Type | Round 2 Pin |
| Cord Length | 18 in |
| Standards | UL Recognized for US and Canada |
| Includes | Mounting Screws, Speed Nut |
| RPM Range | 1501-1600 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
| Gree | Gree |
