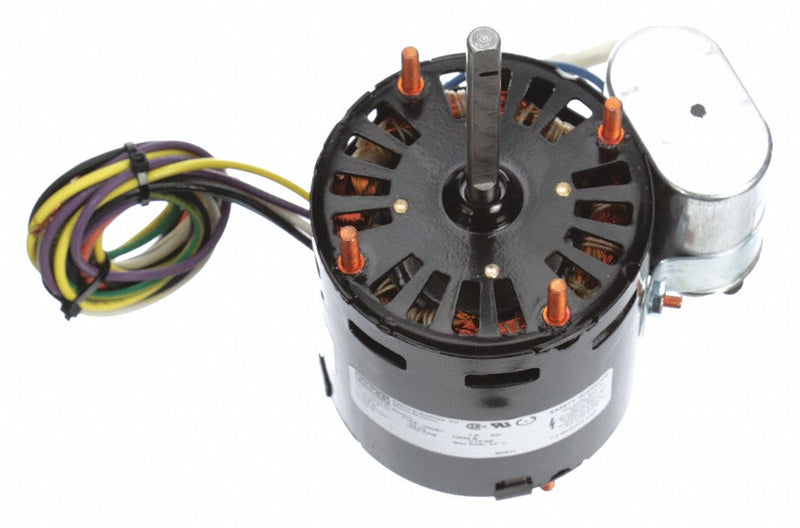

Fasco D1127 - HVAC Motor 1/12 HP 1550 rpm 115/230V 3.3
filler
Availability : Usually Ships in 10 Business Days
| Item | HVAC Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/12 |
| No. of Speeds | 1 |
| Voltage | 115/230 |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 3 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 1.1/0.6 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 1/2 in |
| Mounting Stud Location | 4/Both Ends |
| Stud/Base Mtg. Pattern | 2-7/8 in |
| Motor Shaft Design | Flat |
| Application | HVAC/R |
| Includes | 7.5 MFD/370 V AC Capacitor |
| Standards | CSA Certified (LR6319), UL Recognized (E40513) |
| Mounting Pattern | 2-7/8 |
| Capacitor Required | Yes |
