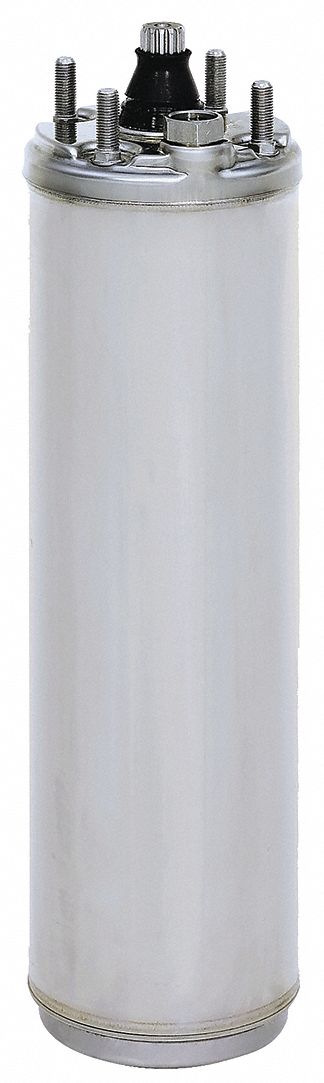

Franklin 1/3 HP Deep Well Submersible Pump Motor,Split-Phase,3450 Nameplate RPM,115 Voltage - 2445029004S

Franklin ElectricSKU: C1544639
MPN : 2445029004S
Weight : 16.35 lb

filler

Price:
$610.27 $744.23

Availability : Usually Ships in 3-5 Business Days

Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: Split-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1/3; Nameplate RPM: 3450; Voltage: 115; Phase: 1; Full Load Amps: 8; Max. SF Amps: 9.2; Hz: 60; Motor Service Factor: 1.75; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 300 lb; Number of Wires: 2; Motor Thermal Protection: Auto; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 48 in; Height: 8 3/4 in; Starter Required: No; Overload Relay Required: No; RPM Range: 3001-3600

ItemDeep Well Submersible Pump Motor
Motor ApplicationPump
Motor Sub ApplicationDeep Well Submersible Pump
Motor DesignSplit-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP1/3
Nameplate RPM3450
Voltage115
Phase1
Full Load Amps8
Max. SF Amps9.2
Hz60
Motor Service Factor1.75
Max. Ambient Temp.86 Degrees F
Thrust Rating300 lb
Number of Wires2
Motor Thermal ProtectionAuto
Motor Shaft RotationCCWSE
Dia.4 in
Diaphragm TypePressure Equalizing
Shaft MaterialSplined Stainless Steel
Shell MaterialCorrosion Resistant Stainless Steel
Stator TypeHermetically Sealed
Lead Length48 in
Height8 3/4 in
Starter RequiredNo
Overload Relay RequiredNo
RPM Range3001-3600
