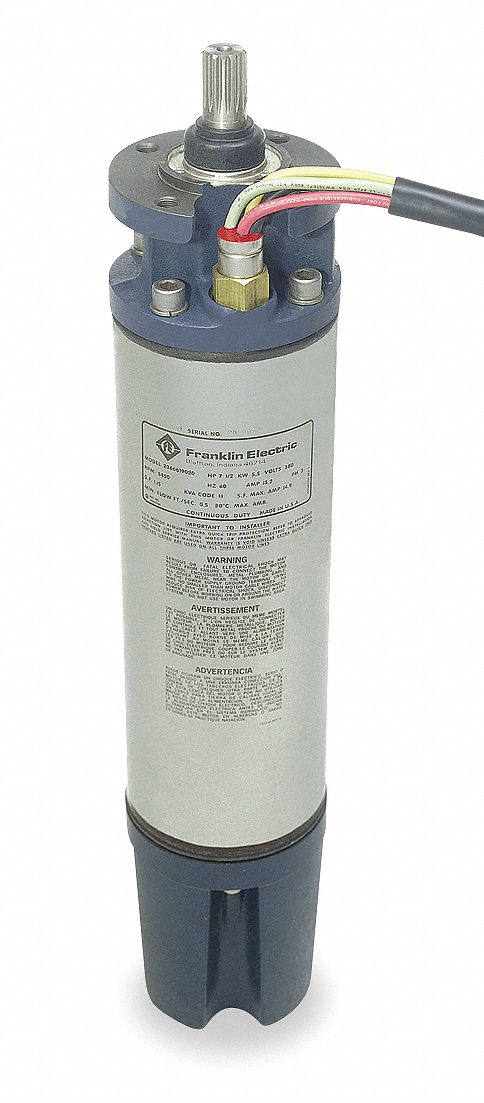

Franklin 10 HP Deep Well Submersible Pump Motor,3-Phase,3450 Nameplate RPM,460 Voltage - 2366129020

Franklin ElectricSKU: C1534333
MPN : 2366129020
Weight : 114.0 lb

filler

Price:
$3,698.47 $4,510.33

Availability : Usually Ships in 15-20 Business Days

Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 10; Nameplate RPM: 3450; Voltage: 460; Phase: 3; Full Load Amps: 14.2; Max. SF Amps: 16.1; Hz: 60; Motor Service Factor: 1.15; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 3500 lb; Number of Wires: 3; Motor Thermal Protection: None; Motor Shaft Rotation: CCWSE; Dia.: 6 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 150 in; Height: 25 13/32 in; Starter Required: 3DY36; Overload Relay Required: 3EA11; Overload Relay Amp Setting: 14.8; Overload Relay Max. Amp Setting: 16.1; RPM Range: 3001-3600

ItemDeep Well Submersible Pump Motor
Motor ApplicationPump
Motor Sub ApplicationDeep Well Submersible Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP10
Nameplate RPM3450
Voltage460
Phase3
Full Load Amps14.2
Max. SF Amps16.1
Hz60
Motor Service Factor1.15
Max. Ambient Temp.86 Degrees F
Thrust Rating3500 lb
Number of Wires3
Motor Thermal ProtectionNone
Motor Shaft RotationCCWSE
Dia.6 in
Diaphragm TypePressure Equalizing
Shaft MaterialSplined Stainless Steel
Shell MaterialCorrosion Resistant Stainless Steel
Stator TypeHermetically Sealed
Lead Length150 in
Height25 13/32 in
Starter Required3DY36
Overload Relay Required3EA11
Overload Relay Amp Setting14.8
Overload Relay Max. Amp Setting16.1
RPM Range3001-3600
