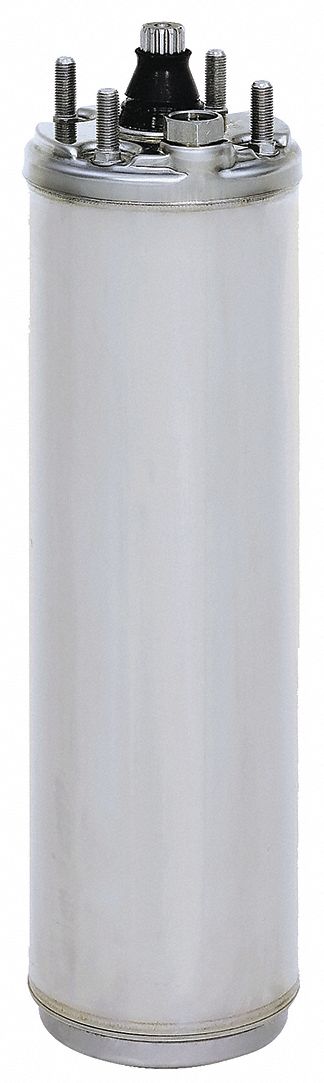

Franklin 2 HP Deep Well Submersible Pump Motor,3-Phase,3450 Nameplate RPM,200 Voltage - 2343059204S
Availability : Usually Ships in 3-5 Business Days
Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 2; Nameplate RPM: 3450; Voltage: 200; Phase: 3; Full Load Amps: 7.7; Max. SF Amps: 9.3; Hz: 60; Motor Service Factor: 1.25; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 650 lb; Number of Wires: 3; Motor Thermal Protection: None; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 48 in; Height: 13 5/8 in; Starter Required: 3DY28; Overload Relay Required: 3DY99; Overload Relay Amp Setting: 8.6; Overload Relay Max. Amp Setting: 9.3; RPM Range: 3001-3600
| Item | Deep Well Submersible Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Deep Well Submersible Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 2 |
| Nameplate RPM | 3450 |
| Voltage | 200 |
| Phase | 3 |
| Full Load Amps | 7.7 |
| Max. SF Amps | 9.3 |
| Hz | 60 |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 86 Degrees F |
| Thrust Rating | 650 lb |
| Number of Wires | 3 |
| Motor Thermal Protection | None |
| Motor Shaft Rotation | CCWSE |
| Dia. | 4 in |
| Diaphragm Type | Pressure Equalizing |
| Shaft Material | Splined Stainless Steel |
| Shell Material | Corrosion Resistant Stainless Steel |
| Stator Type | Hermetically Sealed |
| Lead Length | 48 in |
| Height | 13 5/8 in |
| Starter Required | 3DY28 |
| Overload Relay Required | 3DY99 |
| Overload Relay Amp Setting | 8.6 |
| Overload Relay Max. Amp Setting | 9.3 |
| RPM Range | 3001-3600 |
