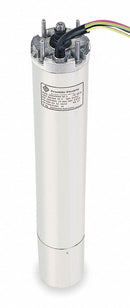

Franklin 5 HP Deep Well Submersible Pump Motor,3-Phase,3450 Nameplate RPM,460 Voltage - 2343278602

Franklin ElectricSKU: C1544658
MPN : 2343278602
Weight : 49.84 lb

filler

Price:
$1,921.06 $2,342.76

Availability : Usually Ships in 1-3 Business Days

Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 5; Nameplate RPM: 3450; Voltage: 460; Phase: 3; Full Load Amps: 8; Max. SF Amps: 8.9; Hz: 60/50; Motor Service Factor: 1.15; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 1500 lb; Number of Wires: 3; Motor Thermal Protection: None; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 100 in; Height: 22 3/16 in; Starter Required: 3DY20; Overload Relay Required: 3DY99; Overload Relay Amp Setting: 8.3; Overload Relay Max. Amp Setting: 8.9; RPM Range: 3001-3600

ItemDeep Well Submersible Pump Motor
Motor ApplicationPump
Motor Sub ApplicationDeep Well Submersible Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP5
Nameplate RPM3450
Voltage460
Phase3
Full Load Amps8
Max. SF Amps8.9
Hz60/50
Motor Service Factor1.15
Max. Ambient Temp.86 Degrees F
Thrust Rating1500 lb
Number of Wires3
Motor Thermal ProtectionNone
Motor Shaft RotationCCWSE
Dia.4 in
Diaphragm TypePressure Equalizing
Shaft MaterialSplined Stainless Steel
Shell MaterialCorrosion Resistant Stainless Steel
Stator TypeHermetically Sealed
Lead Length100 in
Height22 3/16 in
Starter Required3DY20
Overload Relay Required3DY99
Overload Relay Amp Setting8.3
Overload Relay Max. Amp Setting8.9
RPM Range3001-3600
