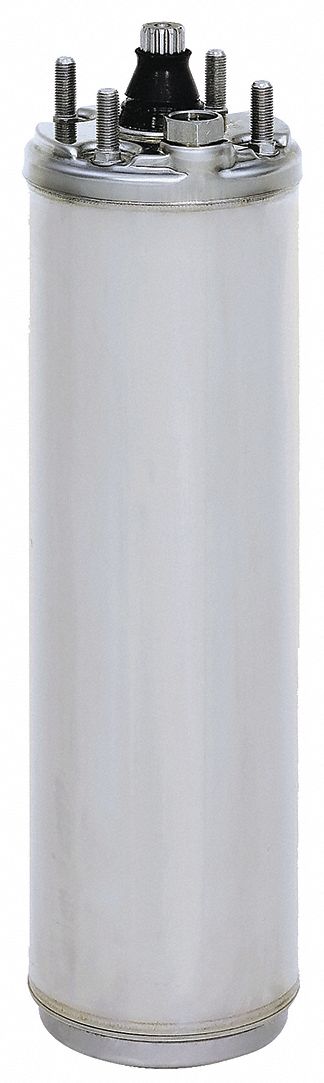

Franklin 1 1/2 HP Deep Well Submersible Pump Motor,3-Phase,3450 Nameplate RPM,230 Voltage - 2345149203S

Franklin ElectricSKU: C1534321
MPN : 2345149203S
Weight : 24.09 lb
filler

Price:
$903.25 $1,101.52

Availability : Usually Ships in 5-7 Business Days

Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1 1/2; Nameplate RPM: 3450; Voltage: 230; Phase: 3; Full Load Amps: 5; Max. SF Amps: 5.9; Hz: 60; Motor Service Factor: 1.3; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 650 lb; Number of Wires: 3; Motor Thermal Protection: None; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 48 in; Height: 11 1/2 in; Starter Required: 3DY20; Overload Relay Required: 3EA46; Overload Relay Amp Setting: 5.5; Overload Relay Max. Amp Setting: 5.9; RPM Range: 3001-3600

ItemDeep Well Submersible Pump Motor
Motor ApplicationPump
Motor Sub ApplicationDeep Well Submersible Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP1 1/2
Nameplate RPM3450
Voltage230
Phase3
Full Load Amps5
Max. SF Amps5.9
Hz60
Motor Service Factor1.3
Max. Ambient Temp.86 Degrees F
Thrust Rating650 lb
Number of Wires3
Motor Thermal ProtectionNone
Motor Shaft RotationCCWSE
Dia.4 in
Diaphragm TypePressure Equalizing
Shaft MaterialSplined Stainless Steel
Shell MaterialCorrosion Resistant Stainless Steel
Stator TypeHermetically Sealed
Lead Length48 in
Height11 1/2 in
Starter Required3DY20
Overload Relay Required3EA46
Overload Relay Amp Setting5.5
Overload Relay Max. Amp Setting5.9
RPM Range3001-3600
