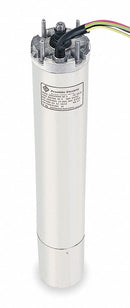

Franklin 7 1/2 HP Deep Well Submersible Pump Motor,3-Phase,3450 Nameplate RPM,460 Voltage - 2343288602
filler
Availability : Usually Ships in 1-3 Business Days
Unit is lubricant-replenishing and comes with a filtered check valve. The replaceable lead wire assembly includes a ground wire. UL Recognized and CSA Certified. Model requires a motor starter and overload relay, sold separately.,Bearings: hydrodynamic thrust,Continuous duty in 86F (30C) water at 1/4 ft. per sec.
| Item | Deep Well Submersible Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Deep Well Submersible Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 7 1/2 |
| Nameplate RPM | 3450 |
| Voltage | 460 |
| Phase | 3 |
| Full Load Amps | 11.5 |
| Max. SF Amps | 13.2 |
| Hz | 60/50 |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 86 Degrees F |
| Thrust Rating | 1500 lb |
| Number of Wires | 3 |
| Motor Thermal Protection | None |
| Motor Shaft Rotation | CCWSE |
| Dia. | 4 in |
| Diaphragm Type | Pressure Equalizing |
| Shaft Material | Splined Stainless Steel |
| Shell Material | Corrosion Resistant Stainless Steel |
| Stator Type | Hermetically Sealed |
| Lead Length | 100 in |
| Height | 28 3/16 in |
| Starter Required | 3DY36 |
| Overload Relay Required | 3EA11 |
| Overload Relay Amp Setting | 12.3 |
| Overload Relay Max. Amp Setting | 13.2 |
| RPM Range | 3001-3600 |
