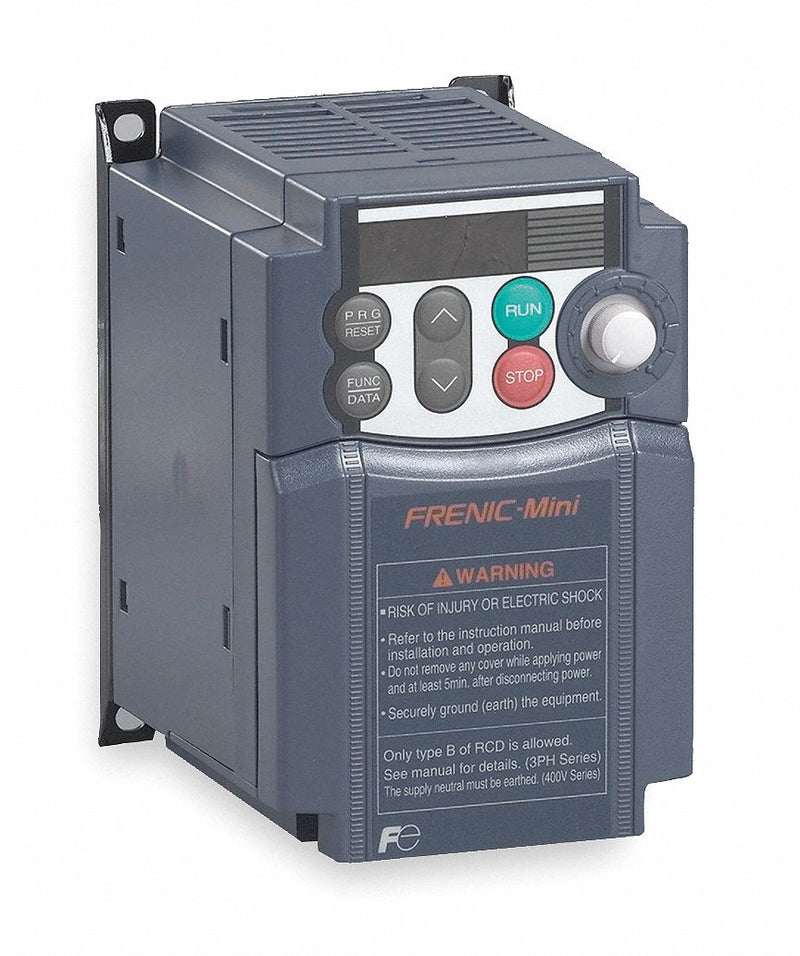

Fuji Electric Variable Frequency Drive,0.25 hp Max. HP,1 Input Phase AC,120V AC Input Voltage - FRN0002C2S-6U
Availability : Usually Ships in 21 Business Days
Variable Frequency Drive; Max. HP: 0.25 hp; Enclosure: Open; Input Voltage: 120V AC; Max. Output Amps: 1.4 A; Output Voltage: 240V AC; Input Phase AC: 1; Output Phase AC: 3; With Bypass / No Bypass: No Bypass; With Line Contactor / No Line Contactor: No Line Contactor; Input Frequency: 50/60 Hz; Output Frequency Range: 50/60 Hz; Height: 4.72 in; Width: 3.15 in; Depth: 3.94 in; Protection: Overvoltage, Overcurrent, Incoming surge, Under voltage, Input phase loss, Output phase loss, Overheating, Overload; Control Method: V/F Control (Simplified Torque-Vector Control); Accepts Input Control Signal: 0-10V DC, 0-5V DC or 4 to 20mA; Display Type: LED; Standards: CE, UL, cUL
| Item | Variable Frequency Drive |
| Max. HP | 0.25 hp |
| Enclosure | Open |
| Input Voltage | 120V AC |
| Max. Output Amps | 1.4 A |
| Output Voltage | 240V AC |
| Input Phase AC | 1 |
| Output Phase AC | 3 |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 50/60 Hz |
| Height | 4.72 in |
| Width | 3.15 in |
| Depth | 3.94 in |
| Protection | Overvoltage, Overcurrent, Incoming surge, Under voltage, Input phase loss, Output phase loss, Overheating, Overload |
| Control Method | V/F Control (Simplified Torque-Vector Control) |
| Accepts Input Control Signal | 0-10V DC, 0-5V DC or 4 to 20mA |
| Display Type | LED |
| Standards | CE, UL, cUL |
