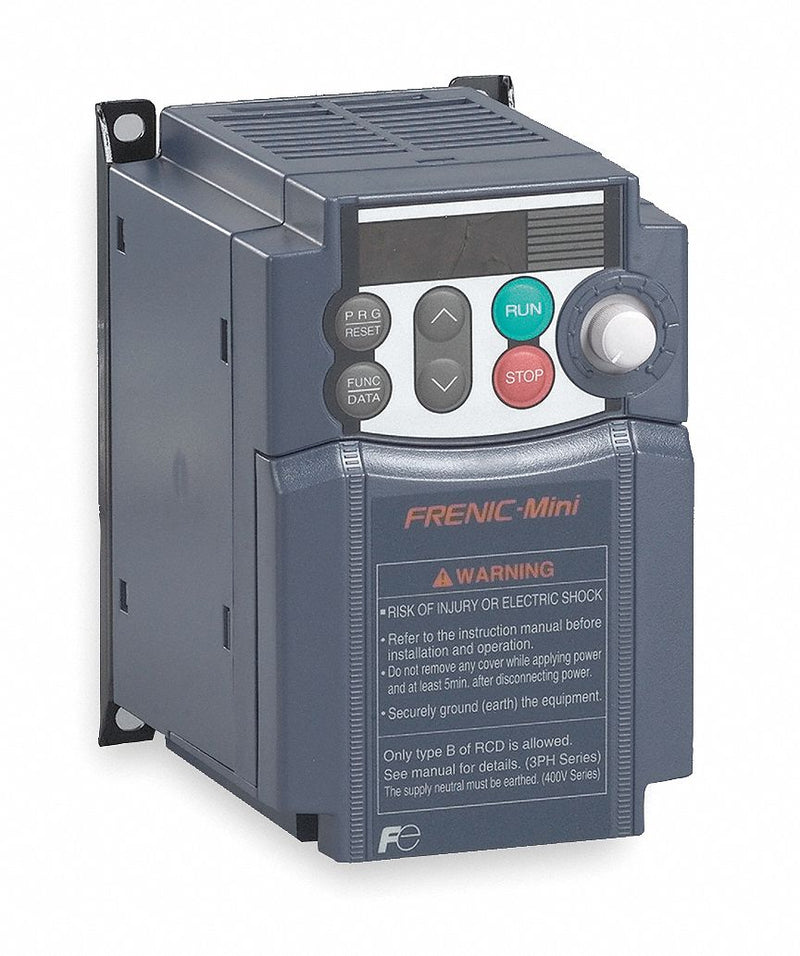

Fuji Electric Variable Frequency Drive,1 hp Max. HP,3 Input Phase AC,240V AC Input Voltage - FRN0006C2S-2U

Fuji ElectricSKU: C1561396
MPN : FRN0006C2S-2U
Weight : 2.0 lb
filler

Price:
$391.52 $477.46

Availability : Usually Ships in 20-30 Business Days

Variable Frequency Drive; Max. HP: 1 hp; Enclosure: Open; Input Voltage: 240V AC; Max. Output Amps: 5 A; Output Voltage: 240V AC; Input Phase AC: 3; Output Phase AC: 3; With Bypass / No Bypass: No Bypass; With Line Contactor / No Line Contactor: No Line Contactor; Input Frequency: 50/60 Hz; Output Frequency Range: 50/60 Hz; Height: 4.72 in; Width: 3.15 in; Depth: 4.72 in; Protection: Overvoltage, Overcurrent, Incoming surge, Under voltage, Input phase loss, Output phase loss, Overheating, Overload; Control Method: V/F Control (Simplified Torque-Vector Control); Display Type: LED; Standards: CE, UL, cUL

ItemVariable Frequency Drive
Max. HP1 hp
EnclosureOpen
Input Voltage240V AC
Max. Output Amps5 A
Output Voltage240V AC
Input Phase AC3
Output Phase AC3
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
Input Frequency50/60 Hz
Output Frequency Range50/60 Hz
Height4.72 in
Width3.15 in
Depth4.72 in
ProtectionOvervoltage, Overcurrent, Incoming surge, Under voltage, Input phase loss, Output phase loss, Overheating, Overload
Control MethodV/F Control (Simplified Torque-Vector Control)
Display TypeLED
StandardsCE, UL, cUL
