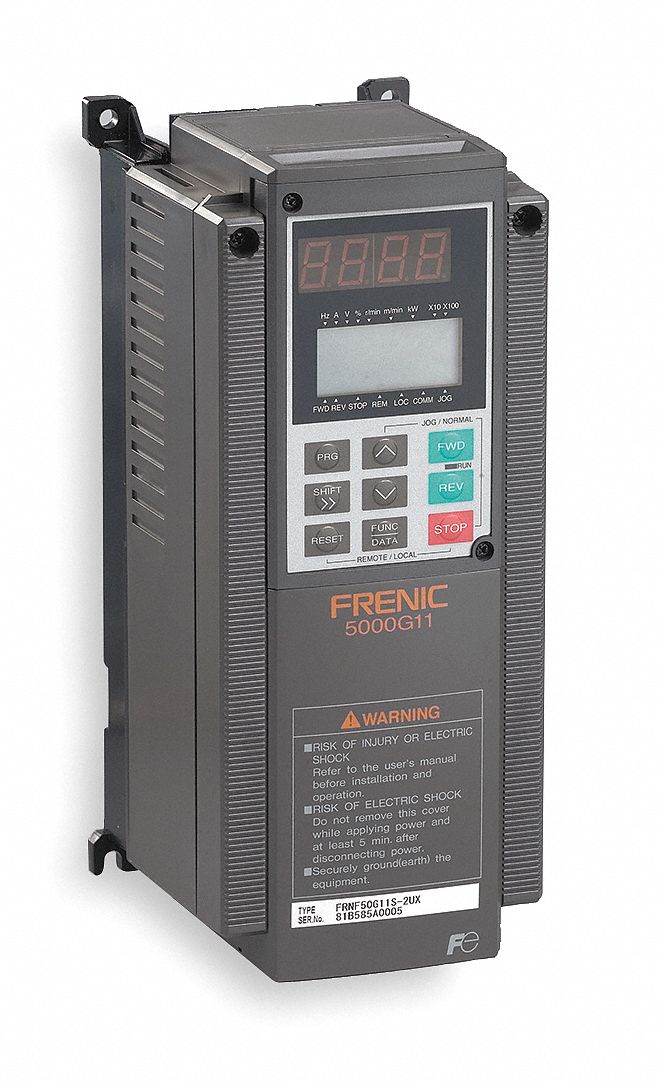

Fuji Electric Variable Frequency Drive,15 hp Max. HP,3 Input Phase AC,240V AC Input Voltage - FRN015P11W-2UX

Fuji ElectricSKU: C1563968
MPN : FRN015P11W-2UX
Weight : 24.0 lb

filler

Price:
$2,072.24 $2,527.12

Availability : Usually Ships in 20-30 Business Days

Variable Frequency Drive; Max. HP: 15 hp; Enclosure: NEMA 1; Input Voltage: 240V AC; Max. Output Amps: 42 A; Output Voltage: 240V AC; Input Phase AC: 3; Output Phase AC: 3; With Bypass / No Bypass: No Bypass; With Line Contactor / No Line Contactor: No Line Contactor; Starting Torque: 50%; Input Frequency: 50/60 Hz; Output Frequency Range: 50/60 Hz; Height: 10.24 in; Width: 8.66 in; Depth: 7.68 in; Protection: Overload, Overvoltage, Under voltage, Input phase loss, Overheating, Short-circuit, Ground fault, Motor overload, DB resistor overheating, Stall prevention, Output phase loss, Motor protection by PTC thermistor, Auto reset; Control Method: V/F Control (Sinusoidal PWM Control), Dynamic Torque-Vector Control (Sinusoidal PWM Control); Display Type: LED, LCD; Displays: Input Volts, Output Amps, RPM, Frequency or Conveyor Speed; Standards: EMC, TUV, UL, cUL

ItemVariable Frequency Drive
Max. HP15 hp
EnclosureNEMA 1
Input Voltage240V AC
Max. Output Amps42 A
Output Voltage240V AC
Input Phase AC3
Output Phase AC3
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
Starting Torque50%
Input Frequency50/60 Hz
Output Frequency Range50/60 Hz
Height10.24 in
Width8.66 in
Depth7.68 in
ProtectionOverload, Overvoltage, Under voltage, Input phase loss, Overheating, Short-circuit, Ground fault, Motor overload, DB resistor overheating, Stall prevention, Output phase loss, Motor protection by PTC thermistor, Auto reset
Control MethodV/F Control (Sinusoidal PWM Control), Dynamic Torque-Vector Control (Sinusoidal PWM Control)
Display TypeLED, LCD
DisplaysInput Volts, Output Amps, RPM, Frequency or Conveyor Speed
StandardsEMC, TUV, UL, cUL
