Genteq Goodman - 3913

GenteqSKU: C1566085
MPN : 3913
Weight : 17.55 lb

filler

Price:
$269.22 $328.32

Availability : Usually Ships in 1-3 Business Days

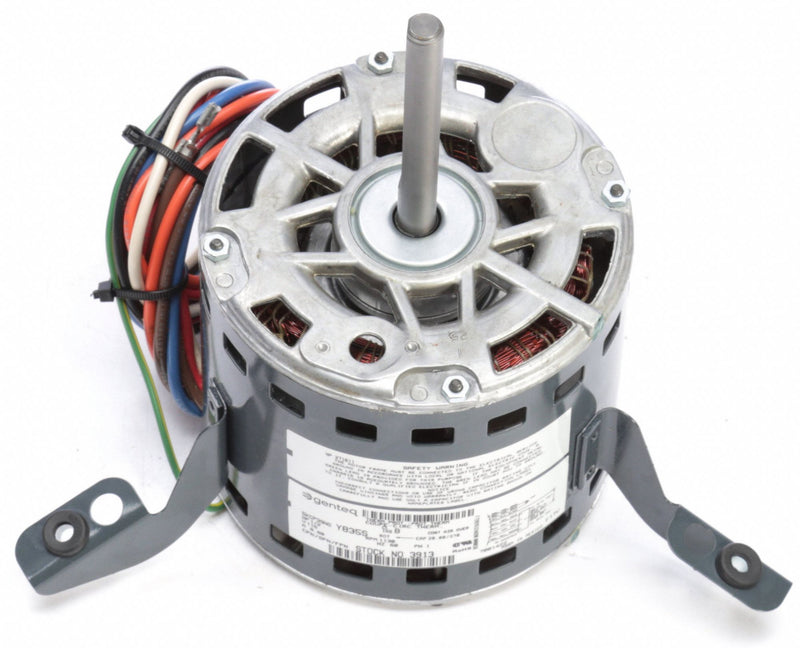

OEM Replacement Brand: Goodman; Item: Direct Drive Blower Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/2; No. of Speeds: 4; Voltage: 115; Motor Shaft Rotation: CWSE; Frame: 48; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: T-Flex; Shaft Dia.: 1/2 in; Shaft Length: 4 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1130; Motor Application: OEM Replacement; Full Load Amps: 8.8; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Body Dia.: 5 3/5 in; Length Less Shaft: 5 5/16 in; Overall Length: 9 5/16 in; Bolt Circle Dia.: 9 in, 10 in; Stud Size: 8 in; Capacitor Required: 2MDW2; Replacement For: Replaces Goodman Mfr. No. 5KCP39NGY835S and GE 5KCP39NGV995AS; Application: Replaces Goodman Mfr. No. 5KCP39NGY835S and GE 5KCP39NGV995AS; Standards: CSA Certified (MC236833), E27885), E306343, UL Recognized (E46035

OEM Replacement BrandGoodman
ItemDirect Drive Blower Motor
Motor DesignPermanent Split Capacitor
Phase1
HP1/2
No. of Speeds4
Voltage115
Motor Shaft RotationCWSE
Frame48
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeT-Flex
Shaft Dia.1/2 in
Shaft Length4 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1130
Motor ApplicationOEM Replacement
Full Load Amps8.8
Hz60
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Motor Service Factor1
Motor BearingsSleeve
Body Dia.5 3/5 in
Length Less Shaft5 5/16 in
Overall Length9 5/16 in
Bolt Circle Dia.9 in, 10 in
Stud Size8 in
Capacitor Required2MDW2
Replacement ForReplaces Goodman Mfr. No. 5KCP39NGY835S and GE 5KCP39NGV995AS
ApplicationReplaces Goodman Mfr. No. 5KCP39NGY835S and GE 5KCP39NGV995AS
StandardsCSA Certified (MC236833), E27885), E306343, UL Recognized (E46035
