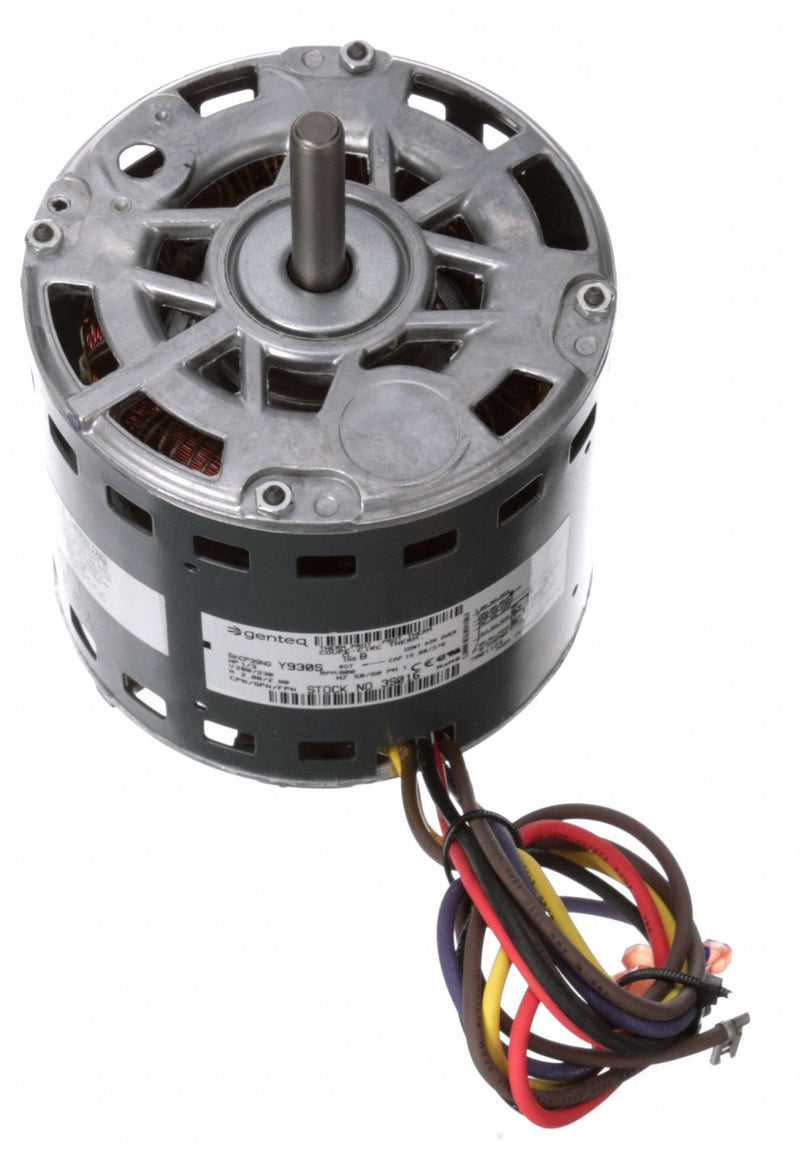

Genteq Rheem/Ruud - 3S016

GenteqSKU: C1566095
MPN : 3S016
Weight : 15.92 lb

filler

Price:
$181.10 $220.85

Availability : Usually Ships in 1-3 Business Days

OEM Replacement Brand: Rheem/Ruud; Item: Direct Drive Blower Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/3; No. of Speeds: 2; Voltage: 200-230; Motor Shaft Rotation: CWSE; Frame: 48; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Band; Shaft Dia.: 1/2 in; Shaft Length: 2 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 900; Motor Application: OEM Replacement; Full Load Amps: 3.2; Hz: 60/50; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Body Dia.: 5 3/5 in; Length Less Shaft: 5 5/16 in; Overall Length: 7 5/16 in; Mounting Stud Pattern: 3-1/16 in x 3-1/16 in; Stud Size: 8 in; Capacitor Required: 2MDV9; Replacement For: Replaces Rheem Mfr. No. 5KCP39NGY930S and GE 5KCP39NGV413AS; Application: Replaces Rheem Mfr. No. 5KCP39NGY930S and GE 5KCP39NGV413AS; Standards: CSA Certified (MC236833), E27885), E306343, UL Recognized (E46035

OEM Replacement BrandRheem/Ruud
ItemDirect Drive Blower Motor
Motor DesignPermanent Split Capacitor
Phase1
HP1/3
No. of Speeds2
Voltage200-230
Motor Shaft RotationCWSE
Frame48
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeBand
Shaft Dia.1/2 in
Shaft Length2 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM900
Motor ApplicationOEM Replacement
Full Load Amps3.2
Hz60/50
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Motor Service Factor1
Motor BearingsSleeve
Body Dia.5 3/5 in
Length Less Shaft5 5/16 in
Overall Length7 5/16 in
Mounting Stud Pattern3-1/16 in x 3-1/16 in
Stud Size8 in
Capacitor Required2MDV9
Replacement ForReplaces Rheem Mfr. No. 5KCP39NGY930S and GE 5KCP39NGV413AS
ApplicationReplaces Rheem Mfr. No. 5KCP39NGY930S and GE 5KCP39NGV413AS
StandardsCSA Certified (MC236833), E27885), E306343, UL Recognized (E46035
