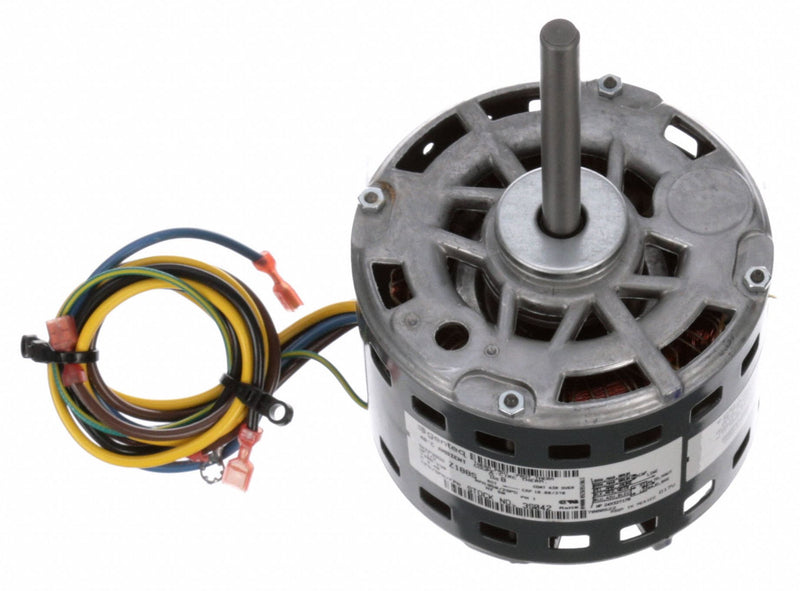

OEM Replacement Brand: Carrier/BDP; Item: Direct Drive Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/3; No. of Speeds: 2; Voltage: 208-230; Motor Shaft Rotation: CCWLE; Frame: 48; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Ring; Shaft Dia.: 1/2 in; Shaft Length: 3 3/4 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 950; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 2.4; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Body Dia.: 5 5/8 in; Length Less Shaft: 5 1/8 in; Overall Length: 8 7/8 in; Bolt Circle Dia.: 5 1/5 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Stud Size: #8-32; Capacitor Required: 2MDV7; Application: Carrier/BDP; Standards: CSA Certified, UL Recognized
| OEM Replacement Brand | Carrier/BDP |
| Item | Direct Drive Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/3 |
| No. of Speeds | 2 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CCWLE |
| Frame | 48 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Ring |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 3/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 950 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 2.4 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 5 1/8 in |
| Overall Length | 8 7/8 in |
| Bolt Circle Dia. | 5 1/5 in |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | #8-32 |
| Capacitor Required | 2MDV7 |
| Application | Carrier/BDP |
| Standards | CSA Certified, UL Recognized |
