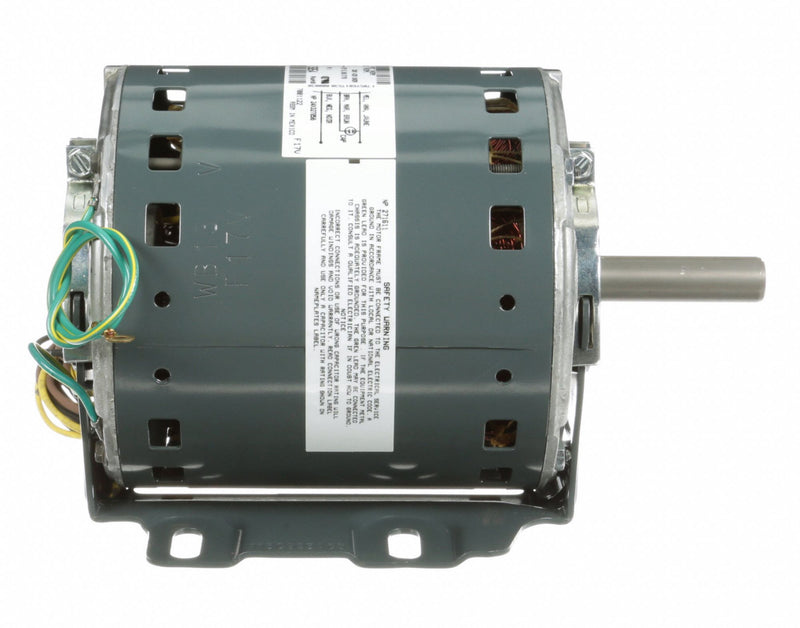

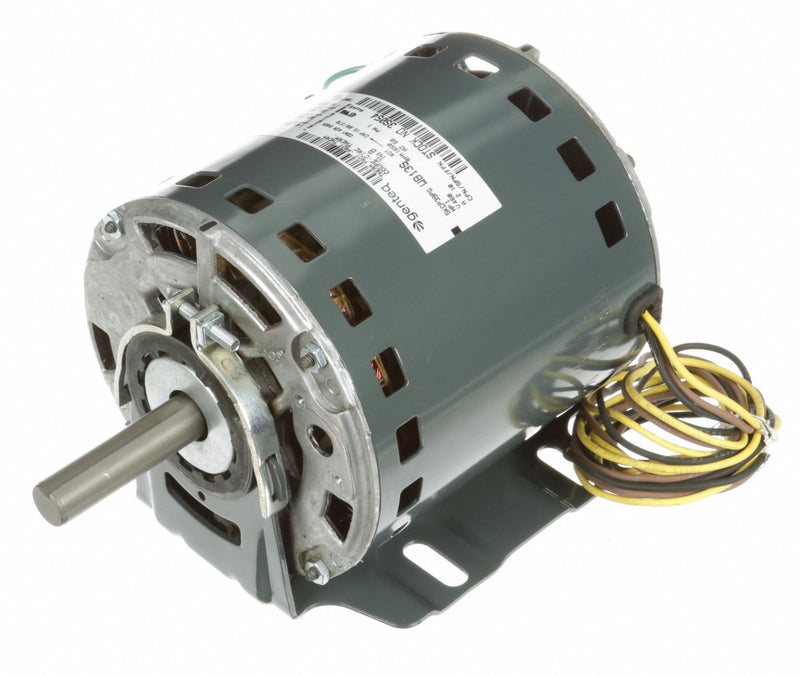

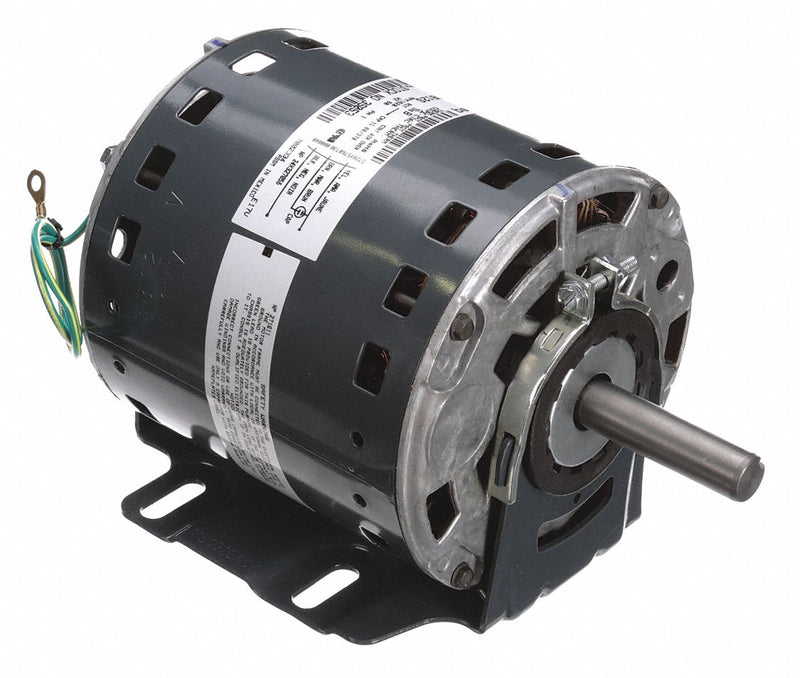

Genteq Carrier/BDP - 3S054

GenteqSKU: C1544325
MPN : 3S054
Weight : 19.4 lb


$298.86 $364.46

Availability : Usually Ships in 1-3 Business Days

OEM Replacement Brand: Carrier/BDP; Item: Direct Drive Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1; No. of Speeds: 1; Voltage: 460; Motor Shaft Rotation: CWLE; Frame: 48; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Cradle Base; Shaft Dia.: 5/8 in; Shaft Length: 2 1/4 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1620; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 2.1; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Body Dia.: 5 5/8 in; Length Less Shaft: 6 7/8 in; Overall Length: 9 1/8 in; Bolt Circle Dia.: 5 1/5 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Stud Size: #8-32; Capacitor Required: 2MDV9; Application: Carrier/BDP; Standards: CSA Certified, UL Recognized

OEM Replacement BrandCarrier/BDP
ItemDirect Drive Motor
Motor DesignPermanent Split Capacitor
No. of Speeds1
Motor Shaft RotationCWLE
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeCradle Base
Shaft Dia.5/8 in
Shaft Length2 1/4 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1620
Motor ApplicationOEM Replacement
Motor Sub ApplicationDirect Drive Fan/Blower
Full Load Amps2.1
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Motor Service Factor1
Motor BearingsBall
Body Dia.5 5/8 in
Length Less Shaft6 7/8 in
Overall Length9 1/8 in
Bolt Circle Dia.5 1/5 in
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size#8-32
Capacitor Required2MDV9
StandardsCSA Certified, UL Recognized
