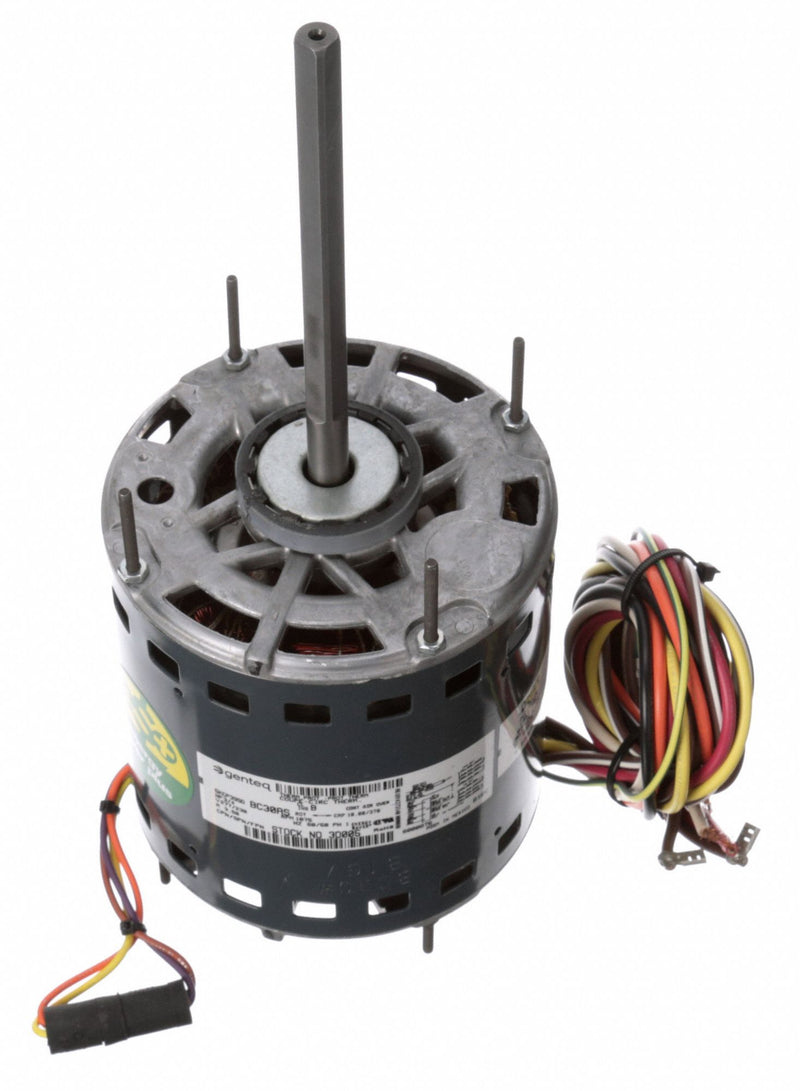

Genteq 3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 277 Voltage - 3D005

GenteqSKU: C1542400
MPN : 3D005
Weight : 20.75 lb

filler

Price:
$396.19 $483.16

Availability : Usually Ships in 1-3 Business Days

This CENTURY direct drive blower motor is suitable for furnace blowers and other shaft-mounted fan and blower applications.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP3/4
Nameplate RPM1075
Voltage277
Full Load Amps3.6
Hz60/50
Phase1
Frame48
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds4
Motor Mounting TypeStud
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Nominal Efficiency68.2 %
Body Dia.5 5/8 in
Length Less Shaft6 13/16 in
Overall Length13 7/16 in
Shaft Dia.1/2 in
Shaft Length6 1/2 in
Motor Shaft DesignDouble-Flat
Capacitor RequiredIncluded
Resilient Ring Dia.2 1/4 in
Ring to Ring Center6 5/8 in
Mounting Stud LocationBoth Ends
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size#8-32
Mounting Stud Length1/16 in
Bolt Circle Dia.5 3/16 in
StandardsCSA Certified, UL Recognized (E46035)
ApplicationBlowers, Fans and Air Circulators
IncludesResilient Mounting
