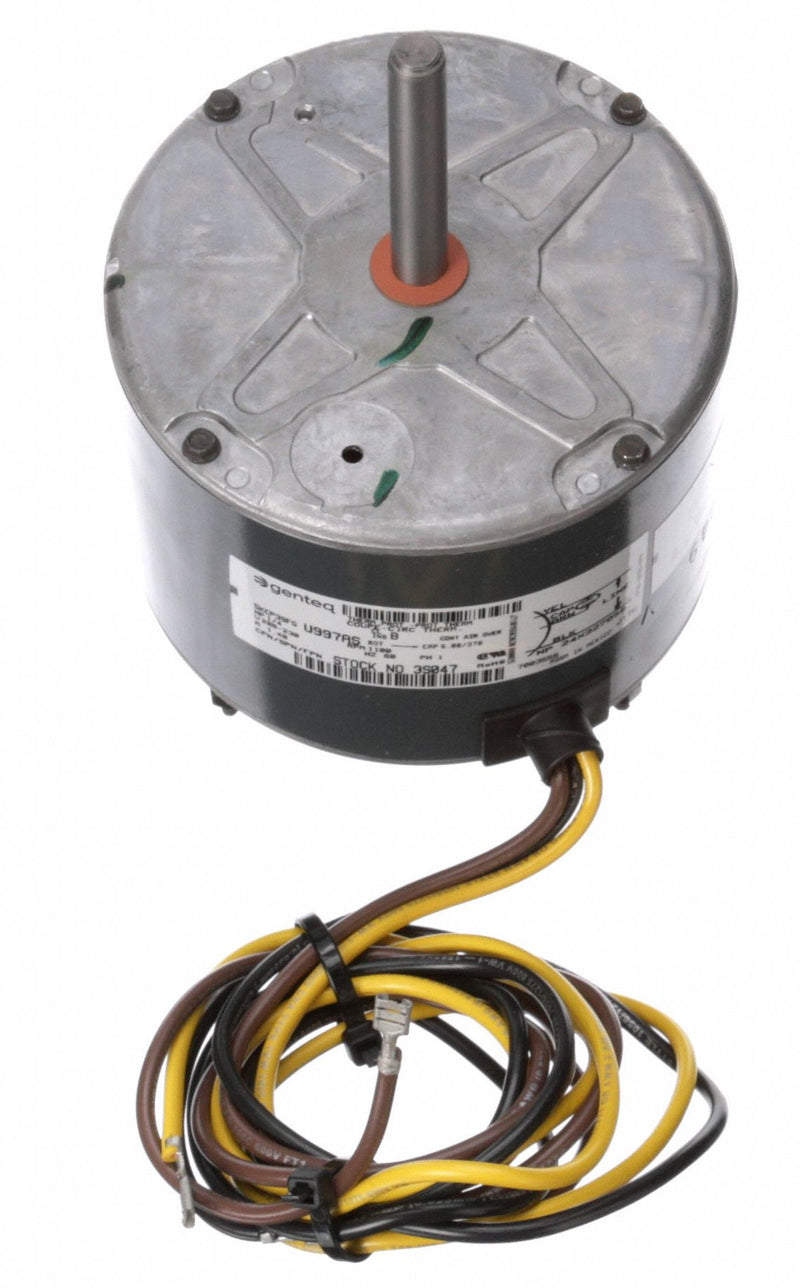

Genteq Carrier/BDP - 3S047

GenteqSKU: C1544318
MPN : 3S047
Weight : 10.75 lb


$158.94 $193.83

Availability : Usually Ships in 1-3 Business Days

OEM Replacement Brand: Carrier/BDP; Item: Condenser Fan Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/4; No. of Speeds: 1; Voltage: 208-230; Motor Shaft Rotation: CWLE; Frame: 48; Motor Enclosure Design: Totally Enclosed Air-Over; Motor Mounting Type: Band; Shaft Dia.: 1/2 in; Shaft Length: 3 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1100; Motor Application: OEM Replacement; Motor Sub Application: Condenser Fan; Full Load Amps: 1.4; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Ball; Body Dia.: 5 5/8 in; Length Less Shaft: 4 3/8 in; Overall Length: 7 3/8 in; Bolt Circle Dia.: 5 1/5 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Stud Size: #8-32; Capacitor Required: 2MDV4; Application: Carrier/BDP; Standards: CSA Certified, UL Recognized

OEM Replacement BrandCarrier/BDP
ItemCondenser Fan Motor
Motor DesignPermanent Split Capacitor
No. of Speeds1
Motor Shaft RotationCWLE
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeBand
Shaft Dia.1/2 in
Shaft Length3 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1100
Motor ApplicationOEM Replacement
Motor Sub ApplicationCondenser Fan
Full Load Amps1.4
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Motor Service Factor1
Motor BearingsBall
Body Dia.5 5/8 in
Length Less Shaft4 3/8 in
Overall Length7 3/8 in
Bolt Circle Dia.5 1/5 in
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size#8-32
Capacitor Required2MDV4
StandardsCSA Certified, UL Recognized
