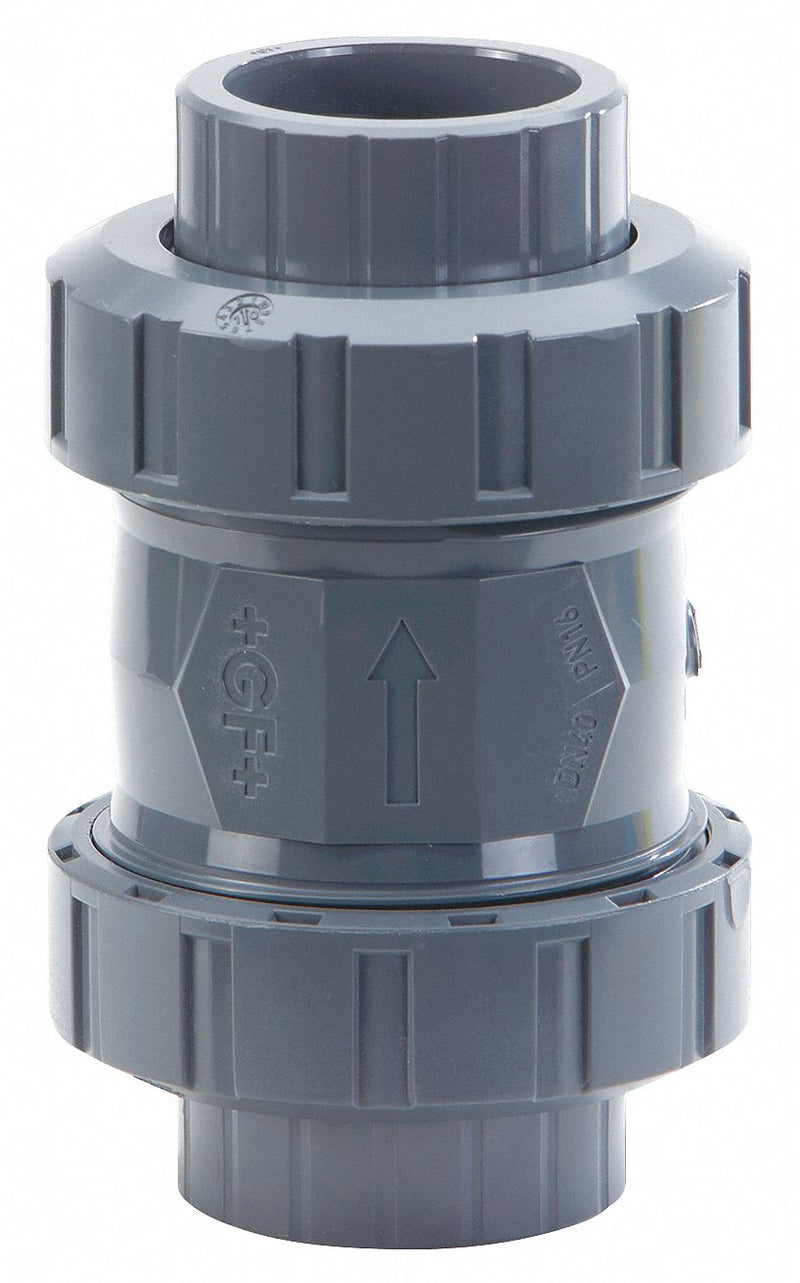

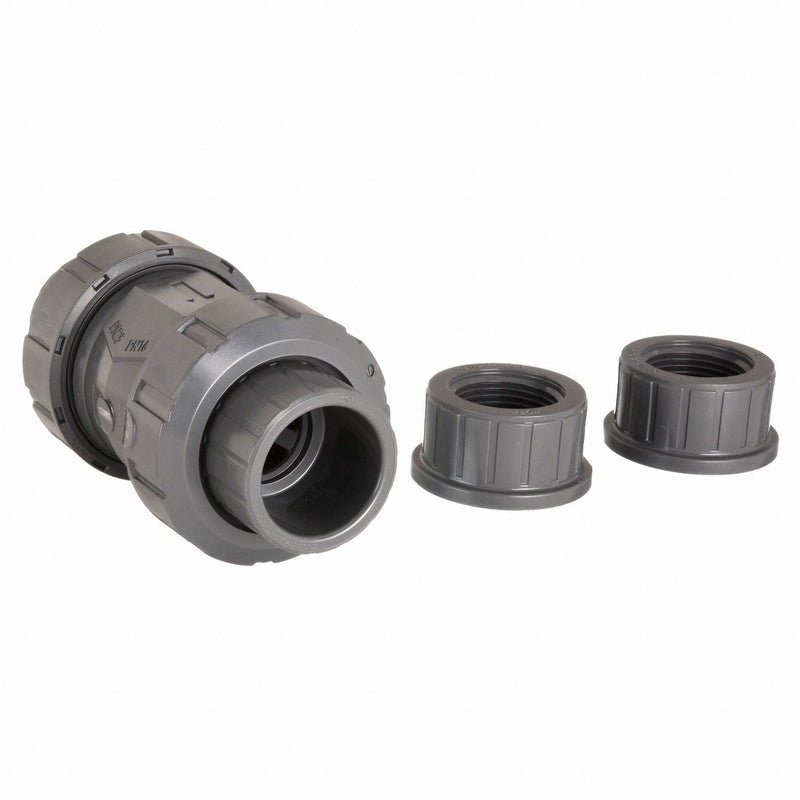

Georg Fischer Check Valve, 2 in, Single, Inline Spring, PVC, Socket/Threaded x Socket/Threaded - 161562107
filler
Availability : Usually Ships in 13 Business Days
Designed to ease installation and removal this GEORG FISCHER check valve features vibration free performance even at high flow velocity. Spring-loaded model has a flow-optimized return cone, double guided.,Sealing at a minimum water column of 0.5m,Vertical or horizontal mounting eases installation
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Spring |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 2 in |
| Connection Type - Check Valves | Socket/Threaded x Socket/Threaded |
| Cracking Pressure - Check Valves | 2 to 3 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 140 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | EPDM |
| Spring Material - Check Valves | Stainless Steel |
| Application - Valves | General Purpose |
| Length | 7 13/64 in |
| Width | 4 7/8 in |
| Overall Height | 4 7/8 in |
