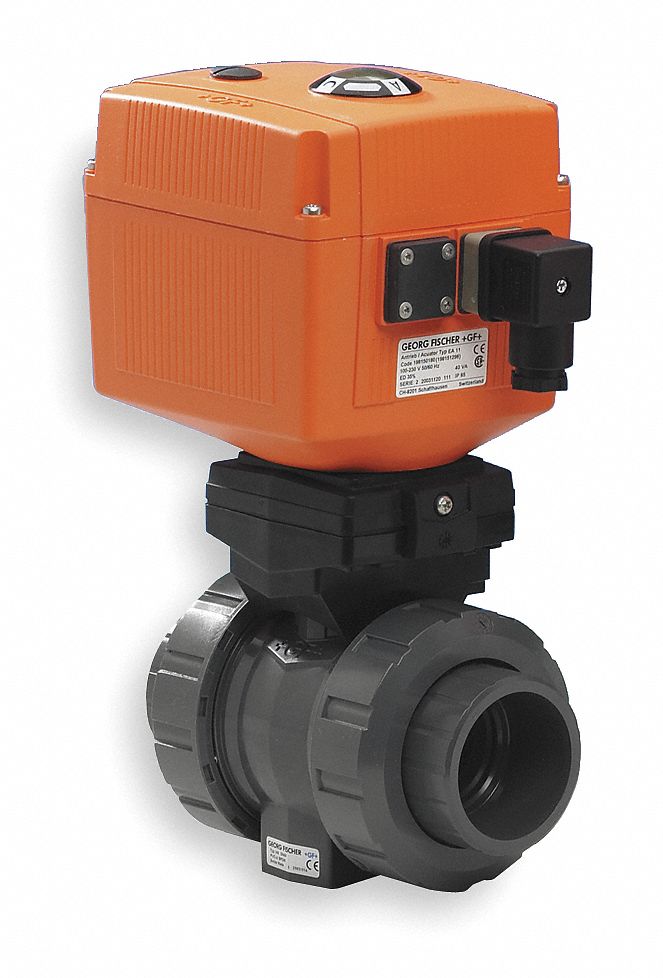

Georg Fischer PVC Electronic Actuated Ball Valve, 3/4 in Pipe Size, 100-230V AC Voltage - 199107204
filler
Availability : Usually Ships in 13 Business Days
Lightweight and easy to install, this plastic electric actuated ball valve is designed for the automation of process control valves. It features PVC construction, which offers strength and corrosion resistance.
| Item | Electronic Actuated Ball Valve |
| Body Material | PVC |
| Body Style | 2-Way |
| Valve Structure | 3-Piece |
| Pipe Size | 3/4 in |
| Connection Type | Socket/Thread x Socket/Thread |
| Port | Full |
| Voltage | 100-230V AC |
| Max. Pressure | 230 psi CWP |
| Temp. Range | 14 Degrees to 140 Degrees F |
| Ball Material | PVC |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Stem Material | PVC |
| Body Seal Material | EPDM |
| Mount | Integral |
| Ball Valve Product Group | Actuated |
| Valve Basic Body Material | Plastic |
