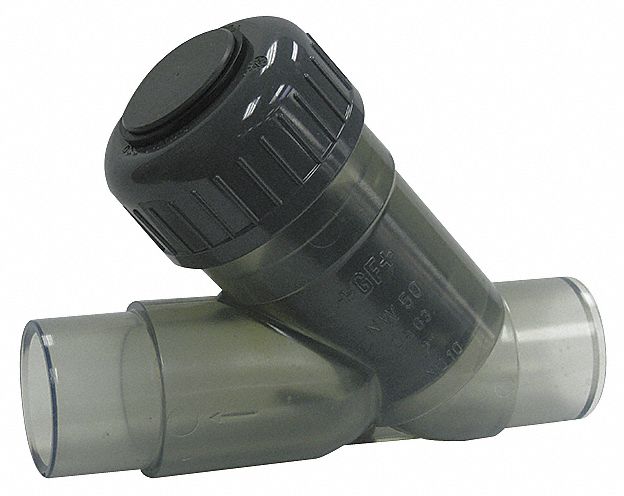

Georg Fischer Check Valve, 1 in, Single, Y, PVC, Spigot x Spigot - 192304008
filler
Availability : Usually Ships in 13 Business Days
Clear PVC Y Check Valves, Max. pressure: 150 psi Max. temp.: 140F,Translucent body allows moving parts to be inspected without disassembling valve; reduces maintenance costs. Spigot connection.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Y |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 1 in |
| Connection Type - Check Valves | Spigot x Spigot |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 140 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | EPDM |
| Application - Valves | General Purpose |
| Length | 6 13/16 in |
| Width | 2 7/16 in |
| Overall Height | 4 7/32 in |
| Standards | ASTM |
