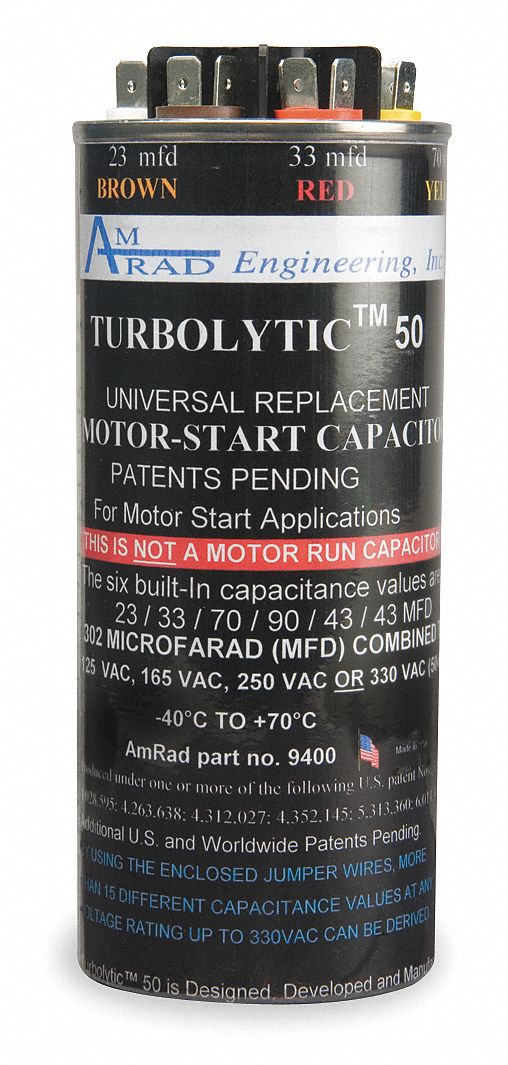

Universal capacitor features 1/4" brass-plated dual male terminals for best reliability, conductivity, and corrosion resistance. Includes jumper wires to combine individual values into the desired MFD rating.
| Motor Capacitor Type | Motor Start Capacitor |
| Microfarad Rating | 23-302 |
| Capacitor Voltage | 125V AC, 165V AC, 250V AC, 330V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 2 1/2 in |
| Case Height | 6 in |
| Overall Width | 2 1/2 in |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 70 Degrees C |
| Case Material | Aluminum |
| For Use With | (50) Different Size Motors |
| Standards | UL Recognized (E133000) |
| Includes | (2) Jumper Wires to Combine Individual Values into Desired MFD Rating |
