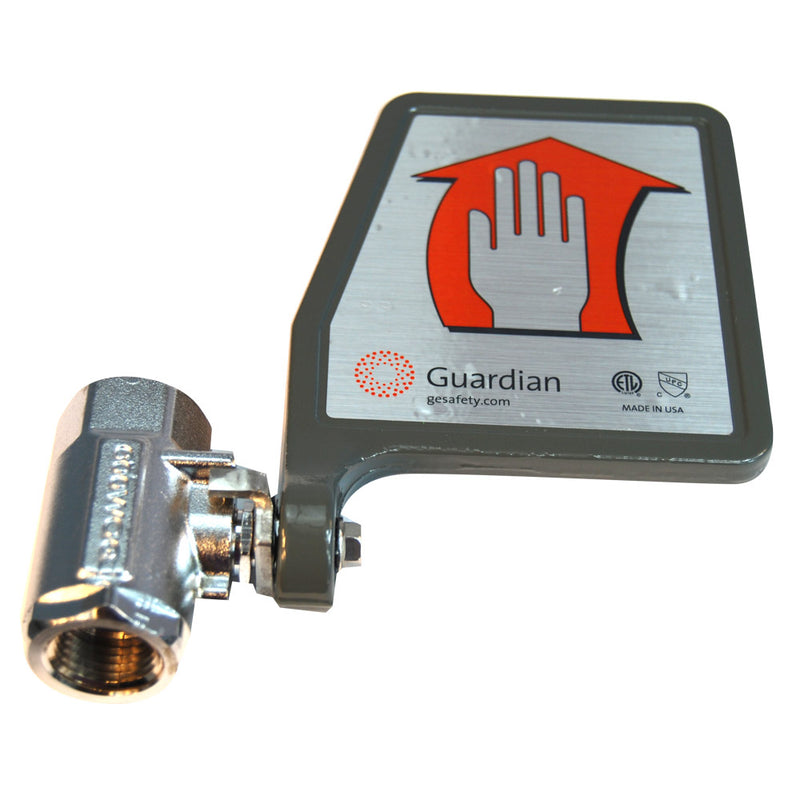

The Guardian AP600-101H is a heavy-duty, chrome-plated brass replacement ball valve designed for emergency eyewash and eye/face wash stations. This assembly features a "stay-open" design, meaning once the flag handle is pushed, the valve remains open to allow for hands-free irrigation of the eyes, meeting ANSI Z358.1 requirements.
This specific model is engineered for horizontal mounting, where the water supply piping enters the valve from the side.
Key Features & Specifications
✅ Valve Action: Stay-open ball valve; remains active until manually closed.
✅ Activation: High-visibility stainless steel flag (push) handle.
✅ Material: Chrome-plated brass body with a stainless steel ball and Teflon (PTFE) seals for superior chemical and corrosion resistance.
✅ Connection Size: 1/2" NPT (IPS) Female Inlet and Outlet.
✅ Mounting Orientation: Horizontal Mount Only (For vertical supply lines, see part #AP600-101V).
✅ Certification: Designed to meet flow requirements for emergency eyewash equipment.
Compatibility
This assembly is the standard replacement part for the eyewash portion of many Guardian Equipment stations, including:
✅ Combination Stations: G1902, G1909, G1950, and G1996.
✅ Wall-Mounted Eyewashes: G1814 and G1805 series.
✅ Pedestal Units: G1825 and G1891 series.
Note: This 1/2" valve is sized for eyewash and eye/face wash units only. For the 1" valve used to operate the overhead drench shower, please refer to part #AP600-104.
| Brand | GUARDIAN EQUIPMENT |
| Part | Push Handle with On/Off Valve |
| Material | Brass |
| Height | 3 in |
| Width | 3 in |
| Depth | 3 in |
| Color | Silver |
| Inlet Pipe Size | 1/2 in |
| Inlet Pipe Thread Type | IPS |
| Inlet Pipe Gender | Female |
| Outlet Pipe Size | 1/2 in |
| Outlet Pipe Thread Type | IPS |
| Outlet Pipe Gender | Female |
| Maximum Inlet Pressure | 125 psi |
| Compatible Mfr Part No | G1750; G1750BC; G1750P; G1760; G1760BC; G1760P; G1814; G1814BC; G1814P; G1825; G1825BC; G1825P; G1902; G1902BC; G1902P; G1950; G1950BC; G1950P; GBF1724; GBF1909 |
| Compatible with Series | Guardian |
| UNSPSC | 46182402 |
| Country of Origin | USA (subject to change) |
