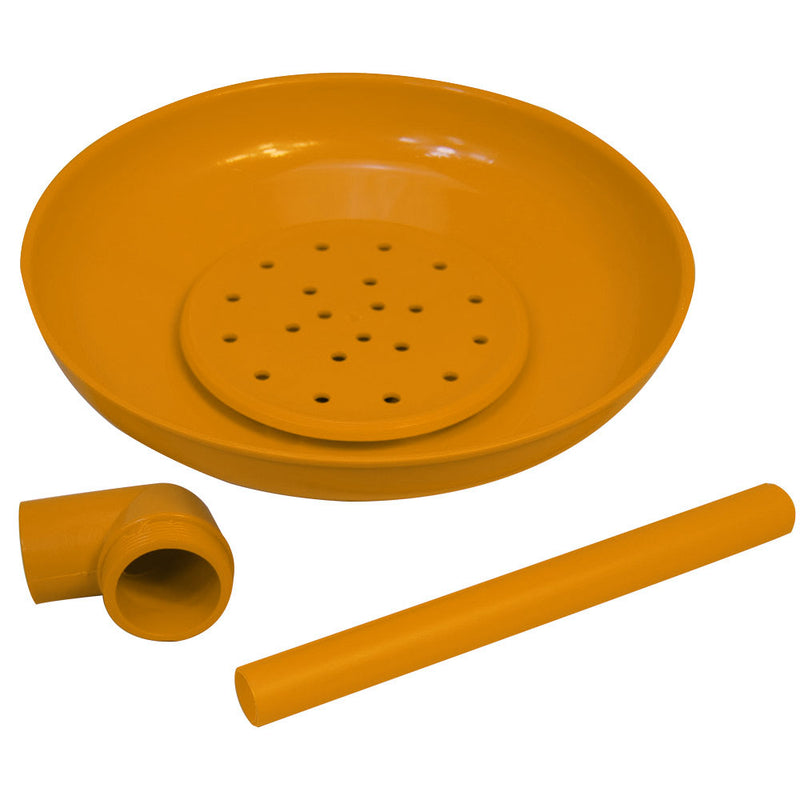

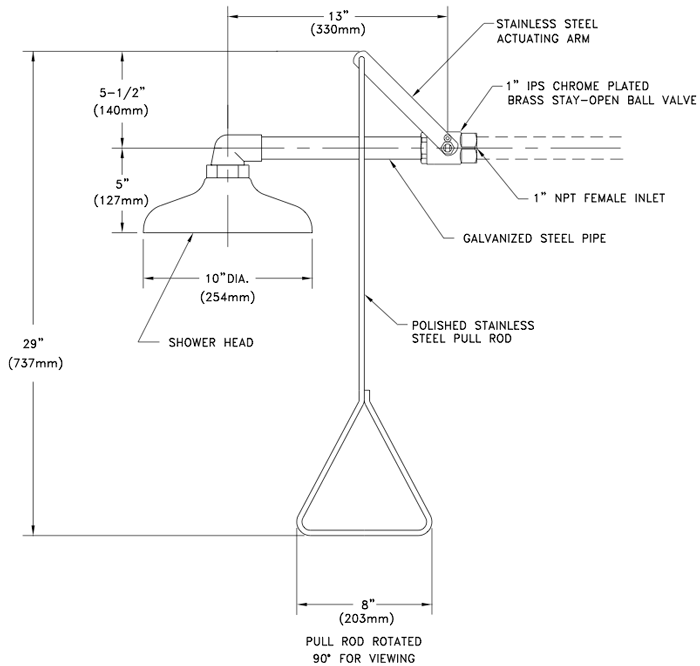

The Guardian G1643 is a horizontally mounted emergency shower that features a 10" diameter orange ABS plastic shower head, 1" IPS chrome-plated brass stay-open ball valve, and a 29" stainless steel pull rod. The unit also includes a 1" IPS galvanized steel nipple with an orange ABS plastic elbow and an ANSI-compliant identification sign.
| Item | Emergency Shower |
| Eye Wash and Shower Mounting | Wall |
| Shower Head Material | ABS Plastic |
| Head Dia. | 10 in |
| Shower Head Activates By | Pull Rod |
| Flow Rate | 30 gpm |
| Ball Valve Type | 1 in IPS Brass Stay Open |
| Handle Material | Stainless Steel |
| Handle Length | 29 in |
| Fitting Size | 1 in NPT |
| Pipe Material | Galvanized Steel |
| Pipe Dimensions | 12 in L x 1 in dia |
| Standards | ANSI Z358.1-2014 |
| Includes | Inspection Tag and Instruction Booklet, Sign |
| ANSI Compliant | Yes |
| ADA Compliance | No |
