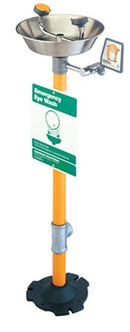

The Guardian G1760 is a free-standing, pedestal-mounted eye/facewash station that features two FS-Plus spray heads that deliver a flood of water for rinsing eyes and face. The FS-Plus spray heads include "flip top" dust covers, internal flow control, and filters that remove water impurities. The unit also features an 11-1/2" diameter stainless steel bowl, a chrome plated brass stay-open ball valve, and galvanized steel pipe and fittings. An ANSI-compliant identification sign is included, and the unit is water tested prior to shipment.
| Item | Eye/Face Wash |
| Eye Wash and Shower Mounting | Pedestal |
| Eye Wash Bowl Material | Stainless Steel |
| Spray Head Material | Polypropylene |
| Eye Wash Activates By | Push Handle |
| Eye Wash Covering | No |
| Assembled/Unassembled | Unassembled |
| ADA Compliance | No |
| ANSI Compliant | Yes |
| Number of Heads | 2 |
| Color | Silver |
| Eye Wash Handle Material | Aluminum |
| Valve Material | Chrome Plated Brass |
| Fitting Material | Chrome Plated Brass |
| Pipe Material | Galvanized Steel |
| Fitting Size | 1/2 in NPT Female |
| Head Dia. | 2.25 in |
| Bowl Dia. | 11 1/2 in |
| Width | 15.5 in |
| Depth | 13.75 in |
| Height | 38 in |
| Standards | ANSI Z358.1-2014 |
| Includes | Hi-Visibility Identification Sign and Inspection Tag, Nylon Flip-Top Dust Covers |
