Availability : Usually Ships in 17 Business Days

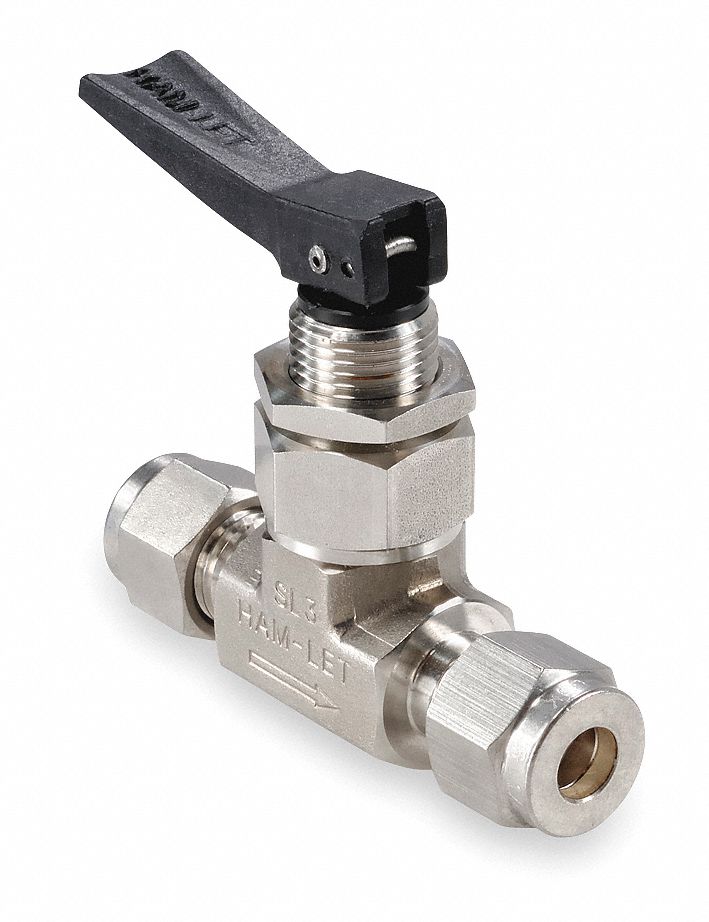

Instrumentation Ball Valves,Toggle Handle, Max. pressure: 300 psi Temp. Range: -40 to 400F,Designed for normally closed and quick On/Off service. Moving handle 90 upward locks in open position. Moving handle 90 downward shuts off by spring return.
Item | Ball Valve |
Body Material | Brass |
Body Style | Inline |
General Connection Type | Compression |
Valve Structure | 1-Piece |
Tube Size | 1/8 in |
Connection Type | Comp. x Comp. |
Port | Standard |
Max. Pressure | 300 psi CWP |
Temp. Range | -40 Degrees to 400 Degrees F |
Ball Material | 316 Stainless Steel |
Seat Material | PTFE |
Stem Type | Blowout Proof |
Handle Type | Toggle |
Handle Material | Nylon |
Stem Material | 316 Stainless Steel |
Body Seal Material | FKM |
Features | Quick On Off Service |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Brass |
Standards | ASME, ASTM, CE, MIL-F-18866, SAE |
