Stainless Steel, High Performance, Max. pressure: 6000 psi Temp. range: -20 to 280F,On/Off, straight-port valves have a 2-way pattern. 3-way valves can be used for diverter service. Tight shutoff and low operating torque.,Instrumentation Ball Valves

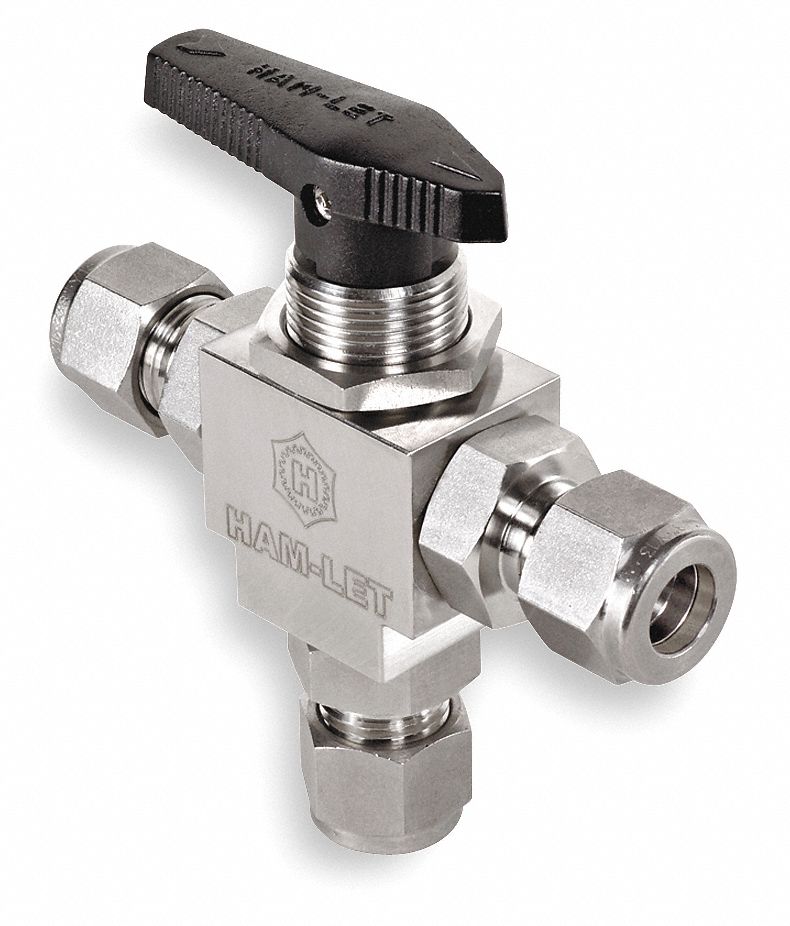

| Item | Mini Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | 3-Way |
| General Connection Type | Compression |
| Valve Structure | 1-Piece |
| Tube Size | 1/2 in |
| Connection Type | Comp. x Comp. x Comp. |
| Port | Standard |
| Max. Pressure | 6000 psi CWP |
| Temp. Range | -20 Degrees to 280 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PCTFE(KEL-F) |
| Stem Type | Blowout Proof |
| Handle Type | Toggle |
| Handle Material | Nylon |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PCTFE(KEL-F) |
| Features | Panel Mount/1/4 Turn On/Off |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASME, ASTM, CE, MIL-F-18866, SAE |
| Overall Length | 4.04 in |
