Haws 8317CTFP Freeze Resistant 120V Eye Face Wash Station & Drench Shower

HawsSKU: C1977914
MPN : 8317CTFP
Weight : 42.0 lb


$4,950.86 $6,037.63

Availability : Usually Ships in 3-5 Business Days
  • Bowl-less Design
  • Hand Activation
  • Eye/Facewash Spray Head
  • Full Body Coverage Area
  • Floor Mount
  • 1-1/4" IPS Supply Inlet
  • 1-1/4" IPS Waste Outlet
  • Exceeds ANSI Standard Z358.1

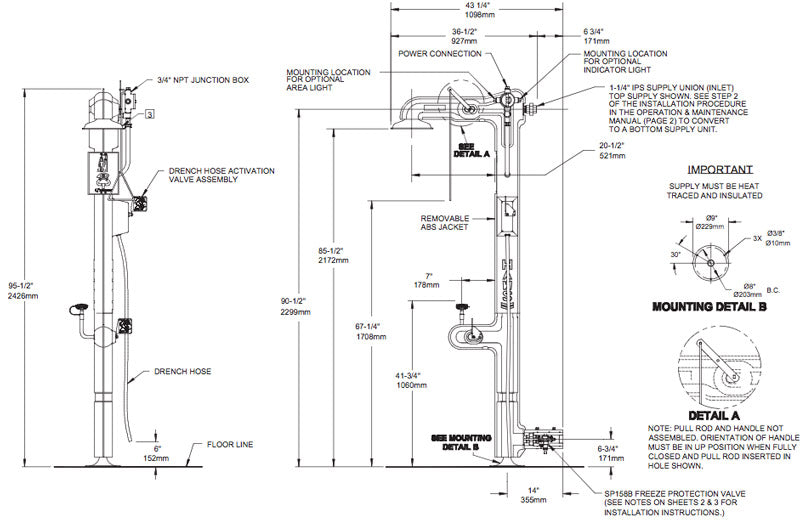

The HAWS model 8317CTFP.120V is a cable-heated, freeze-protected combination shower and eye/facewash with AXION MSR eye/facewash and shower head. The unit includes a green, ABS plastic 10-5/8" shower head with flow control, brass ball valves equipped with stainless steel ball and stem, and a freeze protection bleed valve. Also included are an electric heat-traced cable, powder-coated cast-iron floor flange, and a universal sign.

From the Manufacturer:

Haws Model 8317CTFP heat traced combination shower and eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplet(more...)
ItemFreeze Resistant Eyewash
Sprayhead Eye/Facewash
Mounting Floor Mount
Eyewash Bowl Material No Bowl
Operation Push Handle
Shower Operation Pull Down Arm
Shower Head Material Plastic
Width 21"
Height 96"
Head Dia. 11"
Bowl Dia.11"
