Haws 9201EFE Thermostatic Mixing Valve for Eyewash Stations Tepid Water

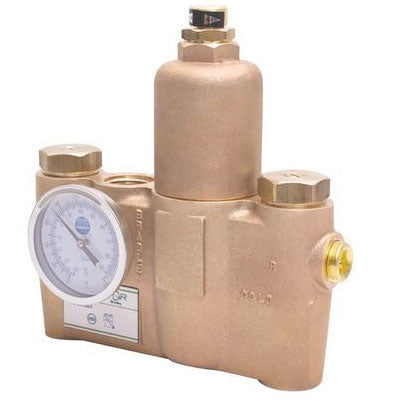

Haws 9201EFE AXION® Thermostatic Mixing Valve (12 GPM)

The Haws 9201EFE AXION® is a high-performance thermostatic mixing valve designed to provide a safe, consistent supply of tepid water to emergency eye and eye/face wash stations. Utilizing advanced paraffin-filled thermostatic technology, this valve accurately mixes hot and cold water to ensure compliance with ANSI/ISEA Z358.1 temperature requirements.

Specifically engineered for single-fixture applications, the 9201EFE features the lowest internal pressure drop in its class and a best-in-class cold water bypass system that ensures continued water flow even if the hot water supply is interrupted.

Key Features:

• AXION® Technology: Superior design ensures a stable, controlled temperature even with fluctuating supply pressures.

• Best-in-Class Cold Water Bypass: Provides a high flow rate of 10 GPM (37.9 L) at 30 PSI drop, ensuring safety even during a mechanical failure.

• Advanced Shuttle Design: Eliminates valve binding and sticking to reduce maintenance and ensure reliability.

• Lime & Calcium Resistant: Internal components resist mineral buildup for a longer service life.

Technical Specifications:

• Flow Capacity: 1 to 12 GPM (3.8 to 45.4 L/min)

• Flow at 30 PSI Drop: 8.5 GPM (32.2 L/min)

• Cold Water Bypass: 10 GPM (37.9 L/min) at 30 PSI

• Inlet Connections: 1/2" NPT (Female)

• Outlet Connection: 3/4" NPT (Female)

• Temperature Set Point: Factory set to 85°F (29°C)

• Adjustment Range: 60° to 90°F (16° to 32°C)

• Certifications: ASSE 1071, ANSI/ISEA Z358.1, CSA certified
