Haws TWBS.EW.H Instantaneous Heater For Eyewash Station

HawsSKU: C1977921
Weight : 40.0 lb


$4,721.25 $5,757.62

Availability : Usually Ships in 5 Business Days
  • Ideal for use where temps fall below 60 degrees
  • Requires 45-90 psi flowing pressure
  • Inlet and outlet: 1/2" IPS
  • Electrical supply: 480 VAC, 3-phase, 3 wire and ground. 24 amp per phase.
  • UL listed for indoor use

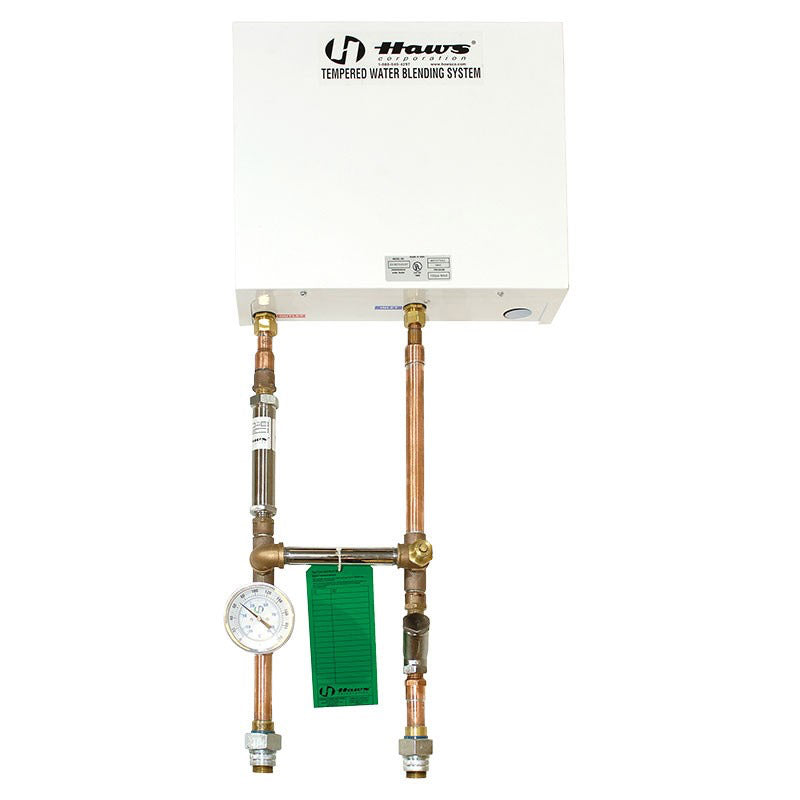

The Haws model TWBS.EW.H is a prepackaged instantaneous electrical water heater that is a fully engineered and tested system with fail-safe features to produce up to 2.5 GPM tempered water for eye wash safety stations.

The system is designed to increase cold water temperature by a minimum of 34 degrees at 4 gpm flow and 68 degrees at 2 gpm, making it suitable for use with a single eyewash station.

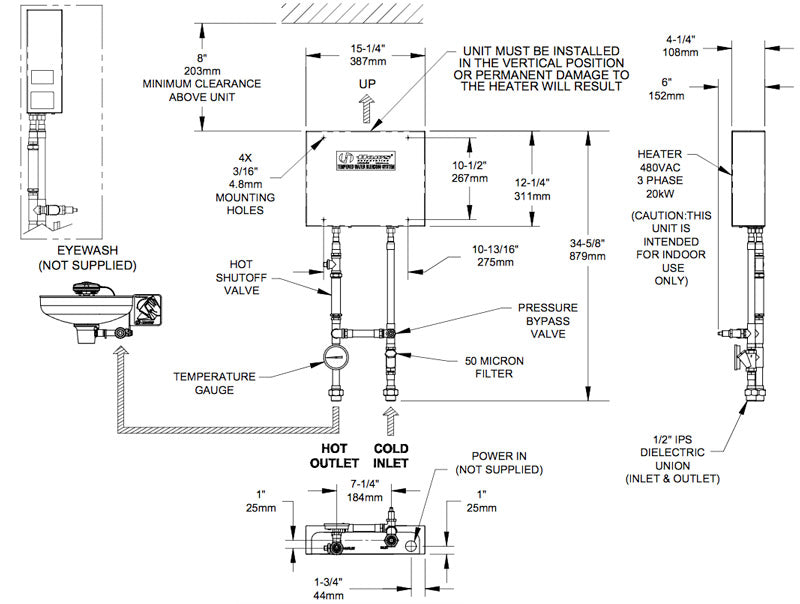

The system includes a 20 KW electrical instantaneous water heater, hot shutoff valve, a bypass valve, in-line 50 x 50 mesh filter, and outlet temperature gauge.
ItemTempering Valves
